  6. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

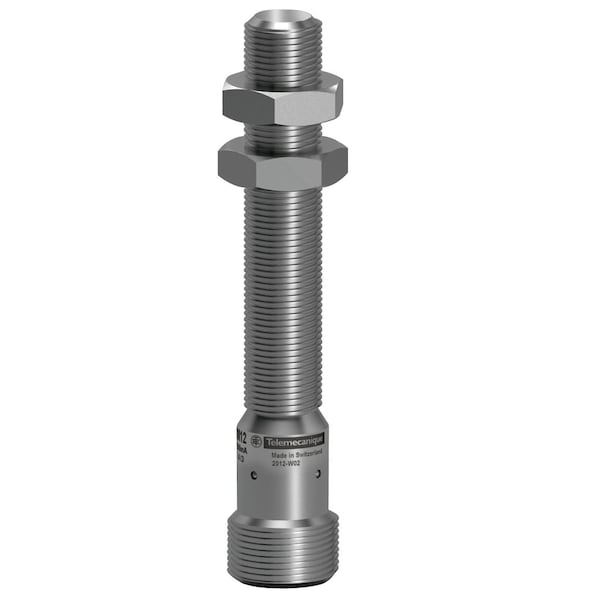

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded XS908R1PAM12 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # XS908R1PAM12

  • Zoro # G0564140

product price:  $157.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
66 mm
Depth
8 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS908R1PAM12
Zoro #
G0564140
UPC #
785901802358
Country of Origin
Switzerland

Dimensions

Length
66 mm
Depth
8 mm
Overall Height
66 mm
Overall Diameter
8 mm

Details

Item
Proximity Sensor
Measurement Range
2.5 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Electrical Connection
M12
IP Rating
IP67, IP69K
Operating Temp. Range
-25 to 70 Degrees C
Standards
CE, cUL
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
harsh environment application
Maximum Delay Response
5E-05 ms
Supply Voltage Limits
10-30 V DC
Series
XS9
Shock Resistance
30 gn 11 msIEC 60068-2-27
Vibration Resistance
25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Delay First Up
40 ms
Differential Travel
1...15 % of Sr
Maximum Delay Recovery
0.023 ms
Storage Temp. Range
-25-70 °C
Maximum Voltage Drop
<2 V closed)
Body Type
single piece body
AC Voltage Rating
Not Rated
Switching Frequency
1,000 Hz
Output Circuit Number of Wires
3
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
PNP
DC Voltage Rating
12-24V DC
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4
Style
Cylindrical, Inductive
Sensing Distance - Maximum
4 mm
Electrical Installation Type
Direct Connector
Sensing Face Shielding
Shielded
Sensing Distance - Minimum
3 mm
Output Circuit Contact Form
NO
Body Stainless Steel Grade
303
Body Material
Stainless Steel

Description

Inductive Cylindrical Proximity Sensor, IP Rating IP67, IP69K, Standards CE, cUL
