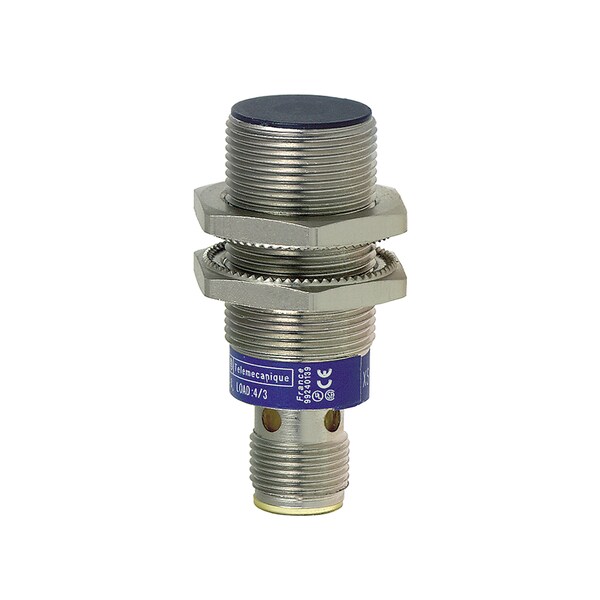

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, Brass, 4 Wires XS1N18PC410D - main

Cylindrical, Inductive Proximity Sensor, Brass, 4 Wires

  • Mfr # XS1N18PC410D

  • Zoro # G3973469

product price:  $112.99
/ea
Free Shipping & Returns

Key Features

Style
Cylindrical, Inductive
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 24V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XS1N18PC410D
Zoro #
G3973469
UPC #
-
Country of Origin
France

Dimensions

Length
51 mm

Details

Item
Proximity Sensor
Style
Cylindrical, Inductive
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
12 to 24V DC
Output Circuit Type
DC-Type, PNP
Output Circuit Number of Wires
4
Sensing Distance - Maximum
5 mm
Output Circuit Contact Form
NC/NO
Standards
IEC 62061; EN/ISO 13849-1; E2; CSA; TÃœV; UL; SIL 2 EN/IEC 61508; PL = d EN/ISO 13849-1; SILCL 2 IEC 62061; CE Marked
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Max. Current Load
10 mA
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP65, IP67, IP69K
Operating Temp. Range
-25 to 70 Degrees C
Application
mobile equipment; general purpose
Storage Temp. Range
-40-85 °C
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
5 ms
Series
XS1
Switching Capacity
<= 200 mA overload and short-circuit protection
Maximum Delay Recovery
0.35 ms
Supply Voltage Limits
9-36 V DC
Maximum Voltage Drop
<2 V closed)
Differential Travel
1...15% of Sr
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.15 ms

Description

Inductive sensor XS1 M18 - L48mm - brass
