  11. Cylindrical, Inductive Proximity Sensor, PPS, 4 Wires

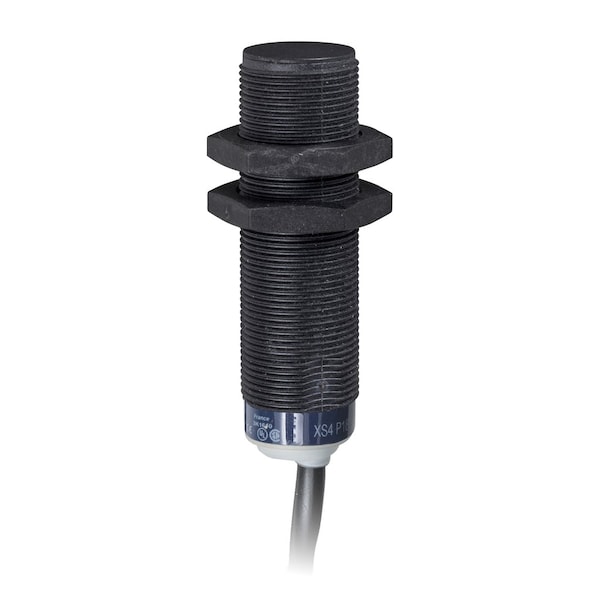

Telemecanique Sensors Cylindrical, Inductive Proximity Sensor, PPS, 4 Wires XS4P18KP340L1 - main

Cylindrical, Inductive Proximity Sensor, PPS, 4 Wires

  • Mfr # XS4P18KP340L1

  • Zoro # G3973362

product price: $118.99
/ea
Free Shipping & Returns

Key Features

Measurement Range
0 to 6.4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Length
60 mm
Depth
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS4P18KP340L1
Zoro #
G3973362
UPC #
-
Country of Origin
France

Dimensions

Length
60 mm
Depth
18 mm

Details

Item
Proximity Sensor
Measurement Range
0 to 6.4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Electrical Connection
Cable Connection
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
IP Rating
IP68
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Standards
UL; CSA; CE Marked
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Application
general purpose
Body Type
fixed
Maximum Voltage Drop
<2.6 V closed)
Series
XS4
Maximum Delay First Up
5 ms
Supply Voltage Limits
10-36 V DC
Switching Capacity
<= 200 mA overload and short-circuit protection
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.15 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
0.35 ms
Style
Cylindrical, Inductive
Output Circuit Number of Wires
4
Output Circuit Contact Form
NC/NO
Output Circuit Type
DC-Type, NPN/PNP
Body Material
PPS
Sensing Distance - Maximum
8 mm

Description

Inductive sensor XS4 M18 - L60mm - PPS -
