  11. Cylindrical Proximity Sensor, 6mm, NPN
This item is Discontinued.

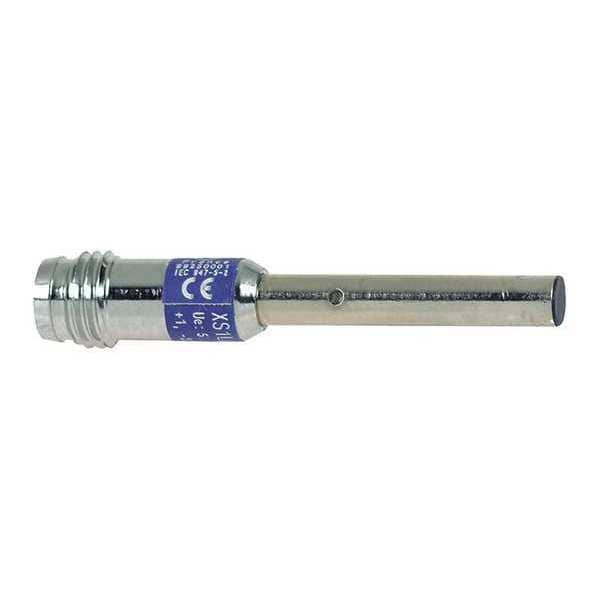

Telemecanique Sensors Cylindrical Proximity Sensor, 6mm, NPN XS506B1NBM8

Cylindrical Proximity Sensor, 6mm, NPN (Discontinued)

  • Mfr # XS506B1NBM8
  • Zoro # G6429473
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS506B1NBM8
Zoro #
G6429473
UPC #
03389119046268
Country of Origin
France

Dimensions

Length
42 mm
Proximity Sensor Diameter
6 mm
Length (Straight Wireway)
42 mm
Overall Diameter
7 mm
Overall Height
42 mm

Details

Item
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3 Wire NPN
Output Mode
NC
Max. Detecting Distance
1.5 mm
Proximity Sensor Electrical Connection
3 Pin M8 Connector
Basic Proximity Sensor Case Material
Metal
Shielded / Unshielded
Shielded
Proximity Sensor Operating Frequency
2,500 Hz
Case Material
303 Stainless Steel
Description/Special Features
Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication
Standards
CE, CSA, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP65, IP67
Max. Current Load
200mA
Electrical Connection
M8
Maximum Voltage Drop
<2 V closed)
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.1 ms
Application
general purpose
Body Type
fixed
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Series
XS5
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Supply Voltage Limits
10-36 V DC
Differential Travel
1...15% of Sr
Maximum Delay Recovery
0.1 ms
Maximum Delay First Up
10 ms
Electrical Installation Type
Direct Connector
Number of Pins
3
Style
Cylindrical
Sensing Method
Inductive
Output Circuit Number of Wires
3
Body Stainless Steel Grade
303
DC Voltage Rating
12-24V DC
Output Circuit Contact Form
NC
Switching Frequency
5,000 Hz
Load Current - Maximum
200 mA
Body Material
Stainless Steel
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
2 mm
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
NPN
Sensing Face Shielding
Shielded
Body Finish
Nickel Plated
AC Voltage Rating
Not Rated
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Cylindrical Proximity Sensor, Inductive, 6 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 1.5 mm, Proximity Sensor Electrical Connection 3 Pin M8 Connector, Output Mode NC, IP Rating IP65, IP67, Case Material 303 Stainless Steel, Length 42 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
