  11. Cylindrical Ultrasonic Sensor, PBT, M12

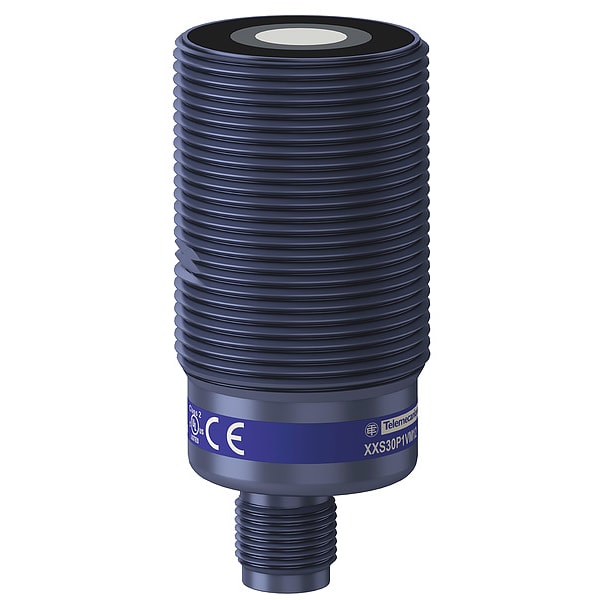

Telemecanique Sensors Cylindrical Ultrasonic Sensor, PBT, M12 XXS30P1VM12 - main

Cylindrical Ultrasonic Sensor, PBT, M12

  • Mfr # XXS30P1VM12

  • Zoro # G3464046

product price: $353.99
/ea
Free Shipping & Returns

Key Features

Case Material
Polybutylene terephthalate (PBT)
Circuit Type
Analogue
Diameter
30 mm
Power Required
14 to 30V DC
Output
0 to 10V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXS30P1VM12
Zoro #
G3464046
UPC #
-
Country of Origin
United States

Dimensions

Diameter
30 mm
Length
1.18 in
Width
1.18 in
Depth
2.53 in
Length (Straight Wireway)
1.18 in
Height
30 mm
Overall Height
64 mm
Minimum Size Of Detected Object
cylinder diameter 1 mm 600 mm
Threaded Length
39.95 mm
Overall Diameter
30 mm

Details

Item
Cylindrical Ultrasonic Sensor
Case Material
Polybutylene terephthalate (PBT)
Circuit Type
Analogue
Power Required
14 to 30V DC
Output
0 to 10V
Electrical Connection
M12
IP Rating
IP65, IP67
Operating Frequency
200 kHz
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Response Time
100 msec
Material
plastic
Description/Special Features
With synchronization mode, Software configurable
Standards
CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508
Features
M30 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode
Blind Zone
105-105 mm
[Us] Rated Supply Voltage
24 V DC reverse polarity protection
Marking
CE
Resistance To Fast Transients
2 kV IEC 61000-4-4
Sensor Type
ultrasonic sensor
Analogue Output Function
0...10 V
Status Led
output state 1 LED yellow) || echo state 1 LED green)
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Front Material
epoxy || rubber || resin
Transmission Frequency
200 kHz
Maximum Switching Capacity
>= 1 kOhm overload and short-circuit protection
Ambient Air Temperature For Operation
-25-70°C
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Electrostatic Discharge
8 kV IEC 61000-4-2
Type Of Output Signal
analogue
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
Maximum Delay Recovery
100 ms
Sensor Design
cylindrical M30
Ip Degree Of Protection
IP65 conforming to IEC 60529 || IP67
Ambient Air Temperature For Storage
-40-80°C
Maximum Delay First Up
180 ms
Current Consumption
30 mA
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Function Available
with synchronisation mode || software configurable
Enclosure Material
PBT
Series Name
general purpose
Deviation Angle From 90° Of Object To Be Detected
-10-10°
Detection System
diffuse
Wiring Technique
5-wire
Supply Voltage Limits
14-30 V DC
[Sd] Sensing Range
0.105-1 m
Sensor Name
XXS
Setting-Up
teach mode || configurator software
Repeat Accuracy
0.001
Product Certifications
cULus || E2 || EAC || RCM || Ecolab
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Output Circuit Voltage - Maximum
10 V
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Voltage Rating
14-30V DC
Series
XXS
Sensing Distance - Minimum
11 cm
Style
Cylindrical
Load Current - Maximum
30 mA
Output Circuit Voltage - Minimum
0 V
Number of Pins
5
Output Circuit Type
Analog
Sensing Distance - Maximum
100 cm
Body Material
PBT
Switching Frequency
200 kHz

Description

Cylindrical Ultrasonic Sensor, Case Material Polybutylene terephthalate (PBT), Diameter 30 mm, 0 to 10V Output, Circuit Type Analogue, Electrical Connection M12, Length 1.18 in, Width 1.18 in, Depth 2.53 in, Power Required 14 to 30V DC, IP Rating IP65, IP67, Operating Frequency 200 kHz, Standards CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F
