  11. CylindricalUltrasonicSensor, Brass, M12

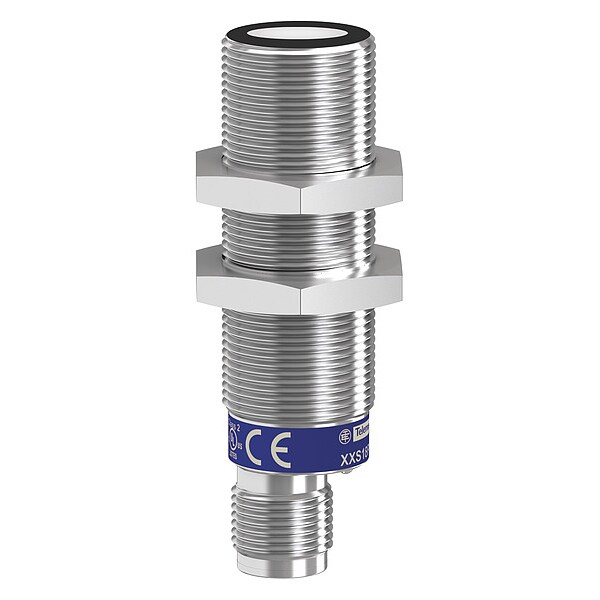

Telemecanique Sensors CylindricalUltrasonicSensor, Brass, M12 XXS18B1AM12 - main

CylindricalUltrasonicSensor, Brass, M12

  • Mfr # XXS18B1AM12

  • Zoro # G3464028

product price: $392.99
/ea
Free Shipping & Returns

Key Features

Case Material
Nickel plated brass
Circuit Type
Analogue
Diameter
18 mm
Power Required
10 to 30V DC
Output
4 to 20mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XXS18B1AM12
Zoro #
G3464028
UPC #
785901059882
Country of Origin
United States

Dimensions

Diameter
18 mm
Length
0.71 in
Width
0.71 in
Depth
2.52 in
Length (Straight Wireway)
0.71 in
Threaded Length
45 mm
Minimum Size Of Detected Object
cylinder diameter 1 mm 600 mm
Height
18 mm
Overall Height
64 mm
Overall Diameter
18 mm

Details

Item
Cylindrical Ultrasonic Sensor
Case Material
Nickel plated brass
Circuit Type
Analogue
Power Required
10 to 30V DC
Output
4 to 20mA
Electrical Connection
M12
IP Rating
IP65, IP67
Operating Frequency
200 kHz
Operating Temp. Range
-13 Degrees F to 158 Degrees F
Response Time
100 msec
Material
metal
Standards
CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508
Description/Special Features
With synchronization mode, Software configurable
Ambient Air Temperature For Storage
-40-80°C
Detection System
diffuse
Current Consumption
30 mA
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
[Sd] Sensing Range
0.105-1 m
Ip Degree Of Protection
IP65 conforming to IEC 60529 || IP67
Deviation Angle From 90° Of Object To Be Detected
-10-10°
Sensor Type
ultrasonic sensor
Analogue Output Function
4...20 mA
Blind Zone
105-105 mm
Series Name
general purpose
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Repeat Accuracy
0.001
Setting-Up
teach mode || configurator software
Status Led
output state 1 LED yellow) || echo state 1 LED green)
Product Certifications
EAC || E2 || RCM || cULus || Ecolab
Maximum Delay First Up
180 ms
Supply Voltage Limits
10-30 V DC
[Sn] Nominal Sensing Distance
1-1 m adjustable with remote teach push-button || 1-1 m software with kit
Marking
CE
Type Of Output Signal
analogue
Ambient Air Temperature For Operation
-25-70°C
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Maximum Switching Capacity
250 Ohm 12 V DC overload and short-circuit protection || 850 Ohm 24 V DC
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Transmission Frequency
200 kHz
Enclosure Material
Nickel Plated Brass
Wiring Technique
5-wire
Sensor Name
XXS
Function Available
with synchronisation mode || software configurable
Front Material
epoxy || rubber || resin
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
Maximum Delay Recovery
100 ms
Sensor Design
cylindrical M18
[Sa] Assured Operating Distance
0.105-1 m teach mode)
Body Material
Brass
Number of Pins
5
Operating Temperature - Maximum
158 Degrees F
Series
XXS
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Minimum
11 cm
Output Circuit Type
Analog
Voltage Rating
10-30V DC
Body Finish
Nickel Plated
Output Circuit Current - Minimum
4 mA
Features
M18 Sensor Body, Reverse Polarity Protection, Software Configurable, Synchronization Mode
Sensing Distance - Maximum
100 cm
Style
Cylindrical
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Load Current - Maximum
30 mA
Output Circuit Current - Maximum
20 mA
Switching Frequency
200 kHz

Description

Cylindrical Ultrasonic Sensor, Case Material Nickel plated brass, Diameter 18 mm, 4 to 20mA Output, Circuit Type Analogue, Electrical Connection M12, Length 0.71 in, Width 0.71 in, Depth 2.52 in, Power Required 10 to 30V DC, IP Rating IP65, IP67, Operating Frequency 200 kHz, Standards CE, CSA C22.2 No 14, cULus, E2, EAC, Ecolab, EN/IEC 60947-5-2, RCM, REACH, UL 508, Operating Temp. Range -13 Degrees F to 158 Degrees F, Description/Special Features With synchronization mode, Software configurable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
