This item is Discontinued.

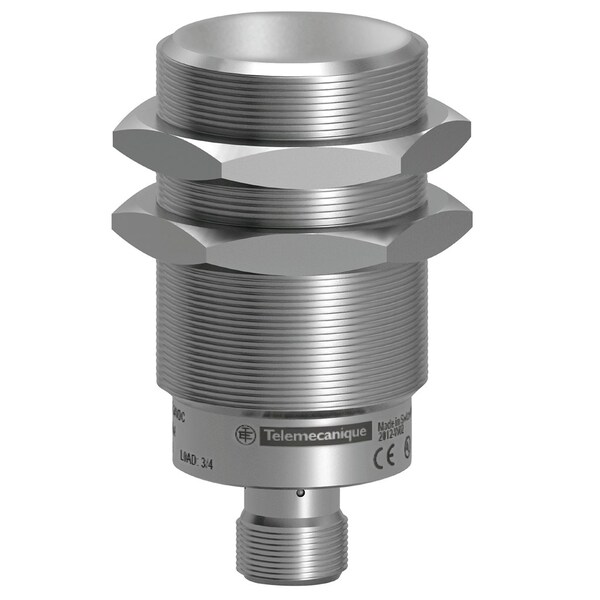

Dc Pnp No 3Wir Flush Sn 20Mm Conn M12 (Discontinued)

Mfr # XS930R1PAM12
Zoro # G0564131

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Product Information

Brand Telemecanique Sensors
MFR # XS930R1PAM12
Zoro # G0564131
UPC #
785901324737
Country of Origin Hungary
Category Proximity Sensors

Dimensions

Length	64 mm
Depth	30 mm
Overall Height	64 mm
Overall Diameter	28 mm

Details

Item	Inductive Proximity Sensor
Proximity Sensor Style	Cylindrical M30
Measurement Range	15 to 40 mm
Proximity Sensing Method	Inductive
Proximity Sensor Power Requirement	12 to 24V DC
Proximity Sensor Output Circuit Type	3-Wire DC PNP
Output Mode	1 NO
Max. Detecting Distance	20 mm
Proximity Sensor Electrical Connection	Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material	Stainless Steel 303
Proximity Sensor Operating Frequency	Less than Or Equal to 100 Hz
IP Rating	IP68, IP69K
Electrical Connection	M12
Description/Special Features	Frontal Detection Face; Output State 1 LED Yellow
Standards	CE, cULus, REACH, RoHS
Max. Current Load	10 mA
Operating Temp. Range	-25 to 70 Degrees C
Application	harsh environment application
Features	18 months Warranty, Yellow LED Output Indication
Differential Travel	1...15 % of Sr
Maximum Delay Response	6E-05 ms
Maximum Voltage Drop	<2 V closed)
Supply Voltage Limits	10-30 V DC
Storage Temp. Range	-25-70 °C
Body Type	single piece body
Series	XS9
Vibration Resistance	25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up	40 ms
Switching Capacity	<= 200 mA overload and short-circuit protection
Maximum Delay Recovery	0.015 ms
Shock Resistance	30 gn 11 msIEC 60068-2-27
Load Current - Maximum	10 mA
Operating Temperature - Minimum	-13 Degrees F
Output Circuit Type	PNP
Sensing Distance - Maximum	20 mm
Operating Temperature - Maximum	158 Degrees F
Body Material	Stainless Steel
Sensing Method	Inductive
Switching Frequency	100 Hz
Output Circuit Contact Form	NO

Description

Inductive Proximity Sensor, IP Rating IP68, IP69K, Standards CE, cULus, REACH, RoHS
