This item is Discontinued.

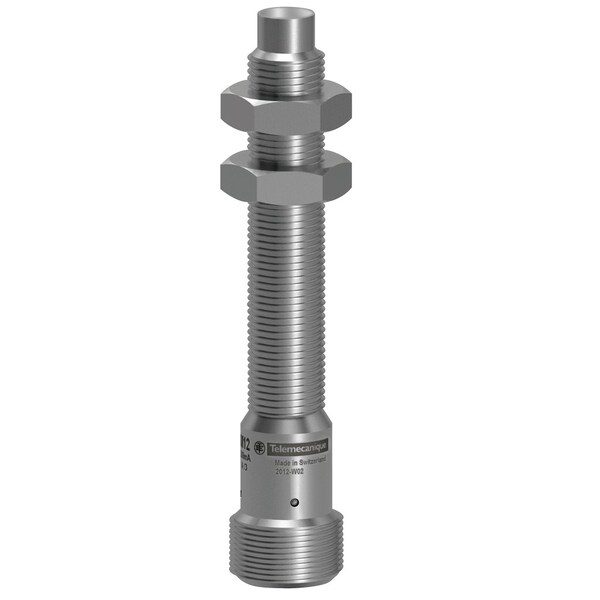

Telemecanique Sensors Dc Pnp No 3Wir Nflush Sn 6Mm Conn M12 XS908R4PAM12

Dc Pnp No 3Wir Nflush Sn 6Mm Conn M12 (Discontinued)

  • Mfr # XS908R4PAM12
  • Zoro # G0859805
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS908R4PAM12
Zoro #
G0859805
UPC #
785901447689
Country of Origin
Hungary

Dimensions

Length
66 mm
Depth
8 mm
Overall Height
66 mm
Overall Diameter
10 mm

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Cylindrical M8
Measurement Range
4 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
6 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Stainless Steel 303
Proximity Sensor Operating Frequency
Less than Or Equal to 700 Hz
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Operating Temp. Range
-25 to 70 Degrees C
Electrical Connection
M12
IP Rating
IP67, IP69K
Standards
CE, cULus, REACH, RoHS
Max. Current Load
10 mA
Application
harsh environment application
Features
18 months Warranty, Yellow LED Output Indication
Storage Temp. Range
-25-70 °C
Body Type
single piece body
Series
XS9
Switching Capacity
<= 200 mA overload and short-circuit protection
Differential Travel
1...15 % of Sr
Maximum Delay Recovery
0.023 ms
Maximum Delay Response
5E-05 ms
Vibration Resistance
25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
40 ms
Supply Voltage Limits
10-30 V DC
Maximum Voltage Drop
<2 V closed)
Shock Resistance
30 gn 11 msIEC 60068-2-27
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
6 mm
Sensing Method
Inductive
Switching Frequency
700 Hz
Output Circuit Contact Form
NO
Output Circuit Type
PNP
Body Material
Stainless Steel
Operating Temperature - Maximum
158 Degrees F
Load Current - Maximum
10 mA

Description

Inductive Proximity Sensor, IP Rating IP67, IP69K, Standards CE, cULus, REACH, RoHS
