Item

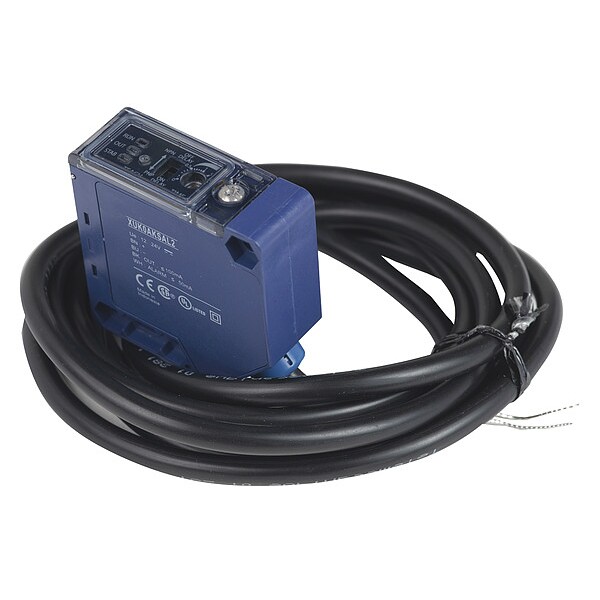

Photoelectric Sensor
Standards
CE, CSA, UL Listed
Electrical Connection
Bare Wire
Current Consumption
<= 35 mA no-load
Features
Scratch-Resistant Lens, Double Insulation, PBT Case
Detection System
multimode
Emission
infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Maximum Delay First Up
200 ms
Electronic Sensor Type
photo-electric sensor
Ambient Air Temperature For Storage
-40-70°C
Discrete Output Type
PNP or NPN
Product Certifications
CSA || UL || CE
Ip Degree Of Protection
IP65 double insulation IEC 60529
Switching Frequency
250 Hz
Series Name
general purpose multimode
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Discrete Output Function
1 NO or 1 NC programmable
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
[Sn] Nominal Sensing Distance
4-4 m polarised reflex need reflector XUZC50 || 30-30 m thru beam need a transmitter XUK0AKSAL2T || 0.28-0.28 m diffuse with background suppression || 0.8-0.8 m diffuse
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Ambient Air Temperature For Operation
-25-55°C
Type Of Output Signal
discrete
Wire Insulation Material
PvR
Sensor Design
compact 50 x 50
Maximum Delay Recovery
2 ms
Maximum Voltage Drop
<1.5 V closed state)
Maximum Sensing Distance
35 m thru beam || 0.28 m diffuse with background suppression || 1.2 m diffuse || 5.7 m polarised reflex
Supply Voltage Limits
10-36 V DC
Maximum Delay Response
2 ms
Status Led
1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
Add On Output
with alarm output, <= 50 mA overload and short-circuit protection
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Load Current - Maximum
100 mA
Sensing Distance - Maximum
35 m
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
131 Degrees F
Product Type
Photoelectric Sensor
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
1NO/1NC
DC Voltage Rating
12-24V DC
Output Circuit Type
NPN and PNP
