  11. Diffuse Photoelectric Sensor, Bare Wire, Rectangular, NPN and PNP

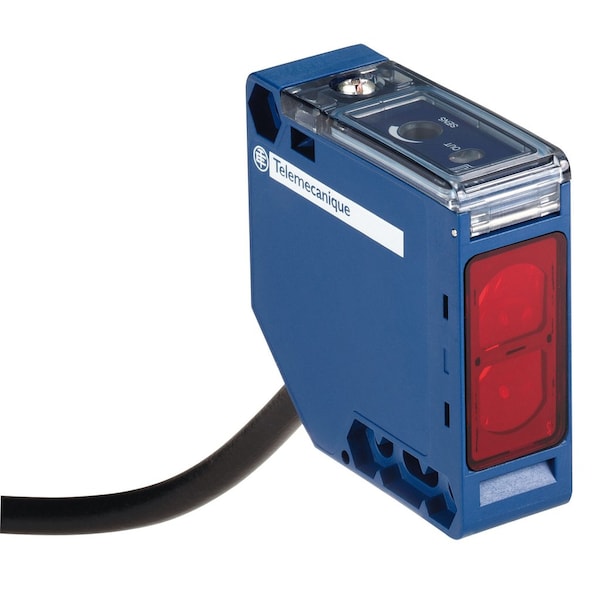

Telemecanique Sensors Diffuse Photoelectric Sensor, Bare Wire, Rectangular, NPN and PNP XUK5ARCNL2 - main

Diffuse Photoelectric Sensor, Bare Wire, Rectangular, NPN and PNP

  • Mfr # XUK5ARCNL2

  • Zoro # G0653670

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Height
50 mm
Width
18 mm
Depth
50 mm
Material
plastic
Features
Programmable, Background Suppression, Mechanical Display of Setting
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUK5ARCNL2
Zoro #
G0653670
UPC #
785901531029
Country of Origin
Indonesia

Dimensions

Height
50 mm
Width
18 mm
Depth
50 mm
Overall Height
50 mm
Cable Length
2 m
Overall Width
18 mm
Cable Outer Diameter
6 mm
Overall Depth
50 mm

Details

Item
Photoelectric Sensor
Material
plastic
Features
Programmable, Background Suppression, Mechanical Display of Setting
Electrical Connection
Bare Wire
Body Material
Plastic
IP Rating
IP65
Standards
CE, Ecolab
Response Time
25 msec
Current Consumption
<= 35 mA no-load
Sensing Method
Diffuse
Type Of Output Signal
discrete
Switching Frequency
20 Hz
Sensor Name
XUK
Detection System
diffuse
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Ambient Air Temperature For Operation
-25-55°C
[Sn] Nominal Sensing Distance
1-1 m diffuse
Lens Material
PMMA
Sensor Design
compact 50 x 50
Setting-Up
sensitivity adjustment
Enclosure Material
PBT
Series Name
general purpose single mode
Maximum Power Consumption In W
2 W AC
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Delay Response
25 ms
Switching Capacity In Ma
3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Maximum Delay First Up
60 ms
Status Led
1 LED yellow)output state || 1 LED green)supply
Output Type
relay
Electronic Sensor Type
photo-electric sensor
Supply Circuit Type
AC/DC
Maximum Sensing Distance
1.5 m diffuse
Wire Insulation Material
PVC
Cable Composition
5 x 0.34 mm²
Maximum Delay Recovery
25 ms
[Us] Rated Supply Voltage
24...240 V AC/DC
Emission
infrared diffuse
Electrical Durability
500000 cycles 1 60 cyc/mn 250 V
Load Current - Maximum
3 mA
AC Voltage Rating
24-240V AC
Series
XUK
Output Circuit Number of Wires
3
DC Voltage Rating
24-240V DC
Style
Rectangular
Operating Temperature - Maximum
131 Degrees F
Output Circuit Type
NPN and PNP
Includes Indicator Lights
Indicator Lights Included
Electrical Installation Type
Prewired Cable
Emitted Sensor Light
Infrared
Sensing Distance - Maximum
1.5 m
Operating Temperature - Minimum
-13 Degrees F

Description

Photoelectric Sensor
