  11. Diffuse Photoelectric Sensor, Bare Wire, Straight, Rectangular, Selectable Light On/Dark On, PNP

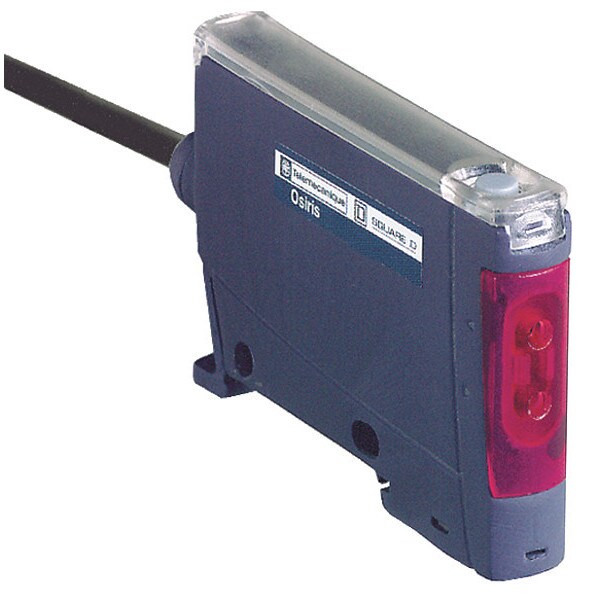

Telemecanique Sensors Diffuse Photoelectric Sensor, Bare Wire, Straight, Rectangular, Selectable Light On/Dark On, PNP XUDA1PSML2 - main

Diffuse Photoelectric Sensor, Bare Wire, Straight, Rectangular, Selectable Light On/Dark On, PNP

  • Mfr # XUDA1PSML2

  • Zoro # G1011062

product price: $161.99
/ea
Free Shipping & Returns

Key Features

Height
65 mm
Width
1.57"
Depth
0.40"
Operating Frequency
1,000 Hz
Standards
CE, cULus, IEC 529, RoHS
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUDA1PSML2
Zoro #
G1011062
UPC #
785901604679
Country of Origin
Hungary

Dimensions

Height
65 mm
Width
1.57"
Depth
0.40"
Width - Rectangular Photoelectric Sensor
40 mm
Length
2.50"
Depth - Rectangular Photoelectric Sensor
10 mm
Height - Rectangular Photoelectric Sensor
64 mm
Overall Height
65 mm
Cable Length
2 m
Overall Depth
10 mm
Overall Width
40 mm

Details

Item
Photoelectric Sensor
Operating Frequency
1,000 Hz
Standards
CE, cULus, IEC 529, RoHS
Electrical Connection
Bare Wire
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Max. Sensing Distance - Rectangular Photoelectric Sensor
Dependent on Fiber Cable Attached
Response Time
0.5 msec
Light Source
Infrared LED
Operating Temp. Range
-10 Degrees to 55 Degrees C
Power Requirement
12 to 24VDC
IP Rating
IP64, IP65
Power Requirement - Rectangular Photoelectric Sensor
12 to 24V DC
Max. Load Current
100 mA
Body Material
PBT
Sensing Method
Diffuse
Current Consumption
<= 50 mA no-load
Supply Circuit Type
DC
Electronic Sensor Type
photo-electric sensor
Emission
red
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Sensor Name
XUD
Status Led
instability 1 LED red) || output state 1 LED yellow)
Maximum Delay First Up
120 ms
Switching Capacity In Ma
<= 100 mA overload protection) || <= 100 mA short-circuit protection)
Switching Frequency
1 kHz
Cable Material
PVC
Product Compatibility
glass or plastic fibre optics 1 mm or 2.2 mm
Setting-Up
sensitivity adjustment with teach mode
Maximum Voltage Drop
<2 V closed)
Lens Material
PMMA
Series Name
Application assembly
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Output Type
solid state
Add On Output
without
Vibration Resistance
+/-0.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
0.5 ms
Maximum Delay Recovery
0.5 ms
Specific Application Of Photoelectric Detector
object
Type Of Output Signal
discrete
Ambient Air Temperature For Operation
-10-55°C
Ambient Air Temperature For Storage
-30-70°C
Interference Protection
without
Sensor Design
fiber design
Enclosure Material
PBT
Orientation
Straight
Operating Temperature - Minimum
14 Degrees F
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
131 Degrees F
Operating Mode
Selectable Light On/Dark On
Series
XU
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
PNP
Style
Rectangular
Load Current - Maximum
100 mA
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
3

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
