  11. Diffuse Photoelectric Sensor, M12, Rectangular, Selectable Light On/Dark On, NPN and PNP

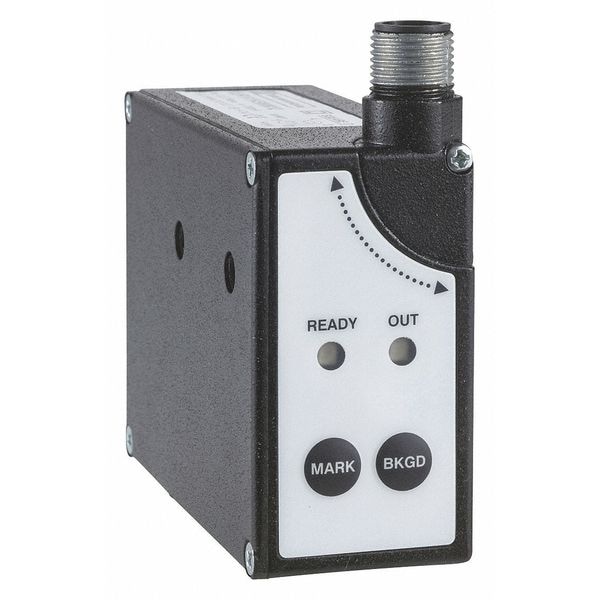

Telemecanique Sensors Diffuse Photoelectric Sensor, M12, Rectangular, Selectable Light On/Dark On, NPN and PNP XURK1KSMM12 - main

Diffuse Photoelectric Sensor, M12, Rectangular, Selectable Light On/Dark On, NPN and PNP

  • Mfr # XURK1KSMM12

  • Zoro # G0858667

product price: $815.99
/ea
Free Shipping & Returns

Key Features

Height
82 mm
Width
31 mm
Depth
58 mm
Material
metal
Sensing Method
Diffuse
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XURK1KSMM12
Zoro #
G0858667
UPC #
785901784777
Country of Origin
Hungary

Dimensions

Height
82 mm
Width
31 mm
Depth
58 mm
Overall Height
82 mm
Minimum Width Of Mark Detected
0.5 mm
Overall Width
31 mm
Overall Depth
58 mm

Details

Item
Photoelectric Sensor
Material
metal
Sensing Method
Diffuse
Response Time
0.05 msec
Body Material
Metal
Electrical Connection
M12
Current Consumption
<= 80 mA no-load
IP Rating
IP67
Standards
CE
Product Specific Application
colour mark
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Maximum Voltage Drop
<1 V closed state), NPN || <2 V closed state), PNP
Add On Output
with analogue output
Ambient Air Temperature For Storage
-20-70°C
Maximum Delay Recovery
0.05 ms
Series Name
Application packaging
Lens Material
glass
Enclosure Material
zinc alloy
Output Type
solid state
Detection System
diffuse
Analogue Output Range
0...5.5 V, DC
Electronic Sensor Type
photo-electric sensor
Maximum Delay First Up
100 ms
Supply Circuit Type
DC
Time Delay Range
20 ms off-delay activation/deactivation by internal switch
Maximum Inclination Of Reader
20°
Ambient Air Temperature For Operation
-10-55°C
Status Led
output state 1 LED red)
Switching Frequency
10 kHz
Setting-Up
sensitivity adjustment with teach mode
Maximum Passing Speed Of Object
10 m/s 1 mm
Output Function Governance
light or dark programmable
Sensor Name
XUR
Emission
red or green
[Sn] Nominal Sensing Distance
18-18 mm 2 x 7 mm need lens XURZ01 || 7-7 mm 1 x 4 mm need lens XURZ02 || 9-9 mm 1.5 x 5 mm without lens
Sensor Design
compact
Switching Capacity In Ma
<= 200 mA overload and short-circuit protection)
Vibration Resistance
7 gn +/- 0.6 mm 10-55 Hz) IEC 60068-2-6
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Discrete Output Function
1 NO or 1 NC programmable
Maximum Delay Response
0.05 ms
Type Of Output Signal
discrete || analogue
Operating Temperature - Maximum
131 Degrees F
Includes Indicator Lights
Indicator Lights Included
Series
XUR
Number of Pins
4
Load Current - Maximum
200 mA
Output Circuit Contact Form
1NO/1NC
Electrical Installation Type
Direct Connector
Output Circuit Type
NPN and PNP
Operating Mode
Selectable Light On/Dark On
Style
Rectangular
DC Voltage Rating
12-24V DC
Operating Temperature - Minimum
14 Degrees F
Product Type
Photoelectric Sensor
Output Circuit Number of Wires
3

Description

Photoelectric Sensor
