Shop TELEMECANIQUE SENSORS

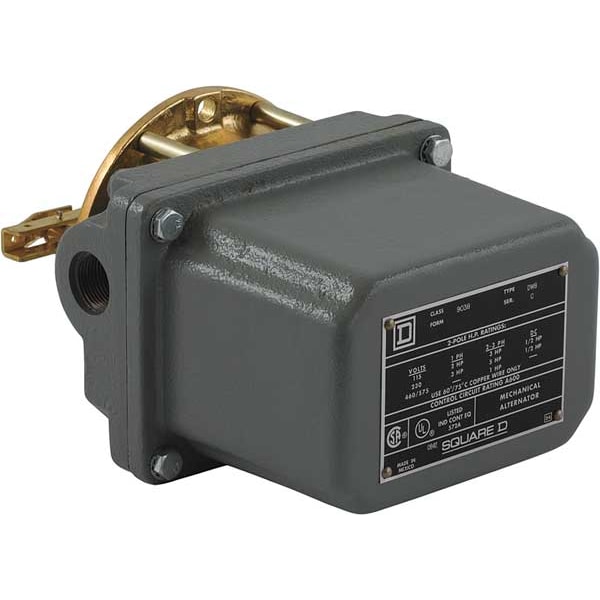

DPST Alternator Liquid Level Switch Close on Rise 600VAC

  • Mfr # 9038DW8
  • Zoro # G1775733
product price:
$
1,346.99
/ea
Free Shipping & Returns

Key Features

Voltage
600V AC
Max. Pressure
50 psi
Amps
10
Max. Voltage
600V
Max. Current
600 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9038DW8
Zoro #
G1775733
UPC #
785901055280
Country of Origin
Mexico
Voltage
600V AC
Max. Pressure
50 psi
Item
Alternator Closed Liquid Level Switch
Amps
10
Max. Voltage
600V
Max. Current
600 A
NEMA Rating
4
Mounting
Vertical Open Tank
Switch Function
Close On Rise
Operating Temp. Range
-22 Degrees to 220 Degrees F
Float Travel
8 3/4 in
Contact Form
4NC
HP @ 3 Phase - 240V
5 hp
Float Position
Below
Float Switch Contact Form
DPST
Electrical Connections
Screw Clamp
Float Rod Angle
Horizontal
HP @ 1 Phase - 240V
3 hp
Standards
CE, CSA, CSA File LR26817, UL Listed, UL 50, UL 508, UL File E12158, UL File E12443
Body Material
Aluminum
HP @ 1 Phase - 120V
2 hp
Includes
Mechanical Alternator
Series
9038D
Proof Pressure
50 psi
Voltage Rating - Maximum
575 V AC
Minimum Media Specific Gravity
0.85
Horsepower @ Single Phase - 240V AC
3 hp
Electrical Connection
Screw-Clamp Terminal
NEMA Enclosure Rating
4
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Maximum
220 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Product Type
Alternator Closed Liquid Level Switch
Current Rating - Maximum
600 A
Operating Temperature - Minimum
-22 Degrees F
Mounting Style
Vertical
Switch Structure
DPST
Features
2 5/8 in Float Post

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 8 3/4 in, NEMA Rating 4, Tank Connection Size 5-1/8 in, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 2.63 in, Height 6.31 in, Width 5.75 in, Contact Form 4NC, Max. Current 600 A, Max. Voltage 600 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Aluminum, Float Position Below
