Shop TELEMECANIQUE SENSORS

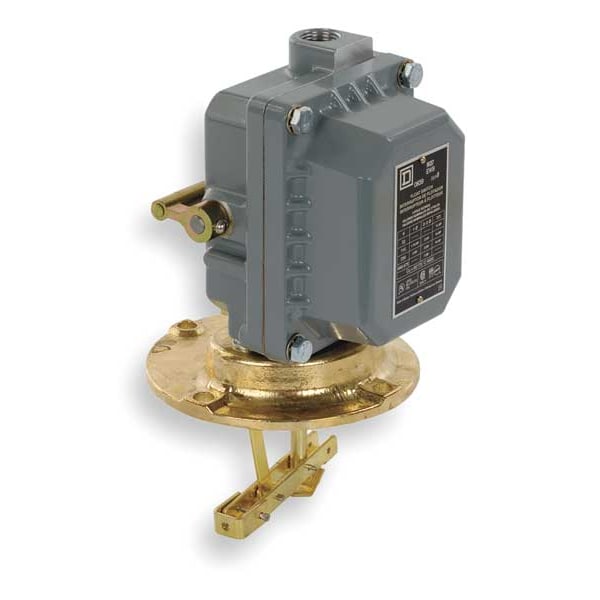

DPST Liquid Level Switch Close on Rise 600VAC

  • Mfr # 9037EW9

  • Zoro # G1090205

product price:
$
649.99
/ea
Free Shipping & Returns

Key Features

Voltage
600VAC
Amps
10
Mounting
Vertical Open Tank
Switch Function
Close On Rise
HP @ 1 Phase - 120V
2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9037EW9
Zoro #
G1090205
UPC #
785901485469
Country of Origin
Mexico

Dimensions

Overall Length
3.86 in
Height
7.6 in
Conduit Size
3/4 in
Tank Connection Size
5-1/8 in
Width
7.6 in
Stem Thread Size
5 1/8 in
Manufacturer Warranty Length
18 mo
Overall Width
7.6 in
Overall Height
7.6 in
Wire Rope Length
3.86 in
Length
3.86 in

Details

Voltage
600VAC
Item
Liquid Level Switch
Amps
10
Mounting
Vertical Open Tank
Switch Function
Close On Rise
HP @ 1 Phase - 120V
2 hp
NEMA Rating
4
HP @ 3 Phase - 240V
5 hp
Float Position
Below
HP @ 1 Phase - 240V
3 hp
Float Switch Contact Form
DPST
Electrical Connections
Screw Clamp
Max. Voltage
600 V
Body Material
Aluminum
Max. Current
600 A
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
Float Travel
2 1/16 in
Contact Form
2NC
Operating Temp. Range
-22 Degrees to 220 Degrees F
Float Rod Angle
Horizontal
Series
9037E
NEMA Enclosure Rating
4
Voltage Rating - Maximum
575 V AC
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Minimum
-22 Degrees F
Operating Temperature - Maximum
220 Degrees F
Electrical Connection
Screw-Clamp Terminal
Minimum Media Specific Gravity
0.85
Horsepower @ Three Phase - 240V AC
5 hp
Current Rating - Maximum
600 A
Mounting Style
Vertical
Switch Structure
DPST
Product Type
Closed Liquid Level Switch
Proof Pressure
50 psi
Features
2 5/8 in Float Post

Description

Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 2 1/16 in, NEMA Rating 4, Tank Connection Size 5-1/8 in, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 3.86 in, Height 7.6 in, Width 7.6 in, Contact Form 2NC, Max. Current 600 A, Max. Voltage 600 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Aluminum, Float Position Below, Float Rod Angle Horizontal, Conduit Size 3/4 in
