  9. DPST Tank Liquid Level Switch Close on Rise 50 psi

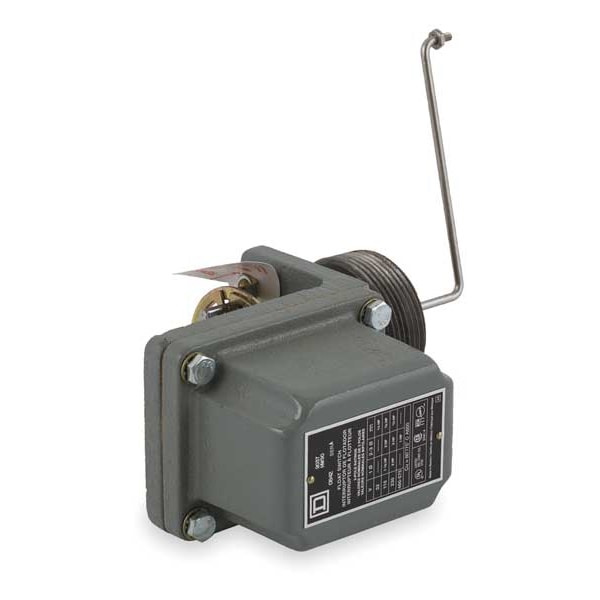

Telemecanique Sensors DPST Tank Liquid Level Switch Close on Rise 50 psi 9037HW30 - main

DPST Tank Liquid Level Switch Close on Rise 50 psi

  • Mfr # 9037HW30

  • Zoro # G2035397

product price: $598.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
50 psi
Mounting
Side
Electrical Connections
Screw Clamp
Stem Material
Stainless Steel
Height
6.22 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9037HW30
Zoro #
G2035397
UPC #
785901075394
Country of Origin
Mexico

Dimensions

Height
6.22 in
Width
3.63 in
Float Length
7.13 in
Tank Connection Size
2-1/2 in MNPT
Conduit Size
2 3/4 in
Stem Length
4.37 in
Float Dia.
2.58 in
Overall Length
16.06 in
Stem Thread Size
2 1/2 in MNPT
Manufacturer Warranty Length
18 mo
Overall Height
5.98 in
Overall Width
2.88 in
Float Diameter
2.58 in

Details

Max. Pressure
50 psi
Item
Liquid Level Switch
Mounting
Side
Electrical Connections
Screw Clamp
Stem Material
Stainless Steel
Switch Function
Close On Rise
Float Travel
4 1/2 in
HP @ 1 Phase - 240V
3 hp
Float Position
Left
HP @ 3 Phase - 240V
5 hp
HP @ 1 Phase - 120V
2 hp
Max. Voltage
475 V
Float Switch Contact Form
DPST
Float Switch Float Material
Stainless Steel
Max. Current
600 A
Float Material
Stainless Steel
Body Material
Aluminum
Contact Form
DPST-2NC
Includes
Rod and Float
Operating Temp. Range
-22 Degrees to 220 Degrees F
Float Rod Angle
90 Degrees
NEMA Rating
4
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
Series
9037H
Horsepower @ Single Phase - 240V AC
3 hp
Electrical Connection
Screw Clamp
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Single Phase - 120V AC
2 hp
Minimum Media Specific Gravity
0.85
Mounting Style
Closed Tank Vertical
Proof Pressure
50 psi
Operating Temperature - Maximum
220 Degrees F
Voltage Rating - Maximum
575 V

Description

Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 4 1/2 in, NEMA Rating 4, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 16.06 in, Float Material Stainless Steel, Float Length 7.13 in, Float Dia. 2.58 in, Stem Material Stainless Steel, Stem Length 4.37 in, Height 6.22 in, Width 3.63 in, Contact Form DPST-2NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp
