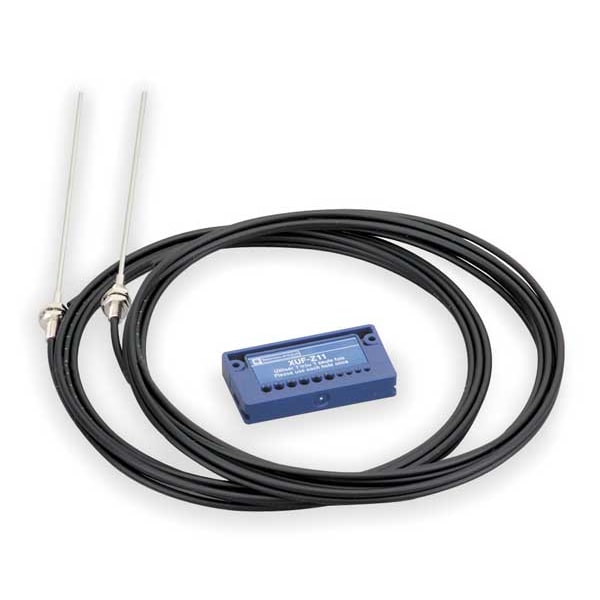

Telemecanique Sensors Fiber Optic Cabl, Diffuse, 6-9/16 ft., 70mm XUFN05321 - main

Fiber Optic Cabl, Diffuse, 6-9/16 ft., 70mm

  • Mfr # XUFN05321

  • Zoro # G6141764

product price: $54.69
/ea

Key Features

Cable Length
2 m
Tip Type
Threaded
Fiber Material Core
Plastic
Sheath
Polyethylene
For Use With
XUYA Photoelectric Amplifier
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUFN05321
Zoro #
G6141764
UPC #
785901242031
Country of Origin
France

Dimensions

Cable Length
2 m
Min. Object Size
1.000mm dia
Beam Dia.
1.0 mm
Optic Fiber Length
2 m
Minimum Bending Radius
25 mm
External Diameter
2.2 mm
Cable Diameter
2 mm
Object Diameter - Minimum
1 mm
Beam Diameter
1 mm

Details

Item
Fiber Optic Cable
Tip Type
Threaded
Fiber Material Core
Plastic
Sheath
Polyethylene
For Use With
XUYA Photoelectric Amplifier
Standards
IEC
Sensing Method
Diffuse
Max. Sensing Distance
70 mm
Temp. Range
-13 Degrees to 140 Degrees F
Features
Trimmable with XUFZ11 Included, Standard Thread End Fitting
IP Rating
IP64, IP641
Product Type
Fiber Optic Cable
Optic Fiber Material
PMMA
Ambient Air Temperature For Operation
-25-60°C
Ip Degree Of Protection
IP64 conforming to IEC 60529 || IP641 conforming to NF C 20-010
Optic Fiber Core
2 x Ø 1 mm
Sensor Name
XUF
Optic Fiber Use
general use
Vibration Resistance
+/- 1.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage
-40-80°C
Sheath Material
Polyethylene
Electronic Sensor Type
photo-electric sensor
Thread Type
M6 x 0.75
End Fitting Type
, standard thread end fitting
Sensor Design
fiber design
[Sn] Nominal Sensing Distance
0.07-0.07 m
Detection System
diffuse
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Product Destination
XUDA
Sensing Distance - Maximum
7 cm
Compatible Product Type
Photoelectric Amplifiers
Compatible with Series
XUYA

Description

Fiber Optic Cable, Diffuse Sensing Method, Cable Length 2 m, Max. Sensing Distance 70 mm, Min. Object Size 1.000mm dia, Sheath Polyethylene, Fiber Material Core Plastic, Temp. Range -13 Degrees to 140 Degrees F, Cable Dia. 2 mm, Tip Type Threaded, Beam Dia. 1.0 mm, Standards IEC, For Use With XUYA Photoelectric Amplifier
