  11. Fiber Optic Sensor, LED, PNP NO/NC, 1.57"H

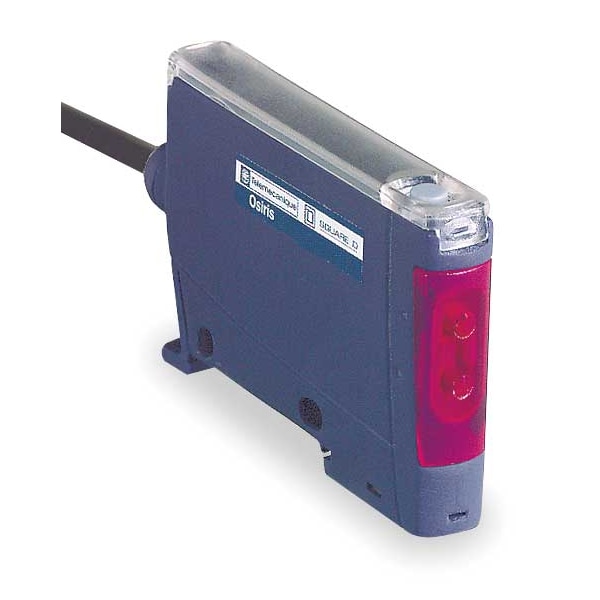

Telemecanique Sensors Fiber Optic Sensor, LED, PNP NO/NC, 1.57"H XUDA2PSMM8 - main

Fiber Optic Sensor, LED, PNP NO/NC, 1.57"H

  • Mfr # XUDA2PSMM8

  • Zoro # G3200775

product price: $259.99
/ea
Free Shipping & Returns

Key Features

Height
1.57 in
Width
0.39 in
Depth
2.56 in
Operating Temp. Range
13 Degrees to 131 Degrees F
Max. Load Current
100 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUDA2PSMM8
Zoro #
G3200775
UPC #
785901840657
Country of Origin
Hungary

Dimensions

Height
1.57 in
Width
0.39 in
Depth
2.56 in
Overall Height
2.56 in
Overall Width
1.57 in
Overall Depth
0.39 in

Details

Item
Photoelectric Sensor
Operating Temp. Range
13 Degrees to 131 Degrees F
Max. Load Current
100 mA
Power Source
12 to 24V DC
Operating Frequency
1000 to 5000 Hz
Display
LED
Response Time
0.1 msec
IP Rating
IP65
Electrical Connection
M8
Standards
CE, cULus
Current Consumption
<= 50 mA no-load
Sensor Name
XUD
Switching Frequency
<= 1 kHz || <= 5 kHz
Maximum Delay First Up
120 ms
Output Type
solid state
Time Delay Range
0...40 s
Display Type
Digital
Maximum Voltage Drop
<2 V closed)
Cable Material
PVC
Supply Circuit Type
DC
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Add On Output
with alarm output, 50 mA overload protection || with alarm output, 50 mA short-circuit protection
Vibration Resistance
+/-0.5 mm 10-55 Hz)IEC 60068-2-6 || 7 gn 10-55 Hz)IEC 60068-2-6
Interference Protection
with
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Emission
red
Maximum Delay Response
0.1 ms
Series Name
Application assembly
Ambient Air Temperature For Storage
-30-70°C
Ambient Air Temperature For Operation
-10-55°C
Specific Application Of Photoelectric Detector
object
Maximum Delay Recovery
0.1 ms
Enclosure Material
PBT
Setting-Up
sensitivity adjustment with teach mode
Electronic Sensor Type
photo-electric sensor
Sensor Design
fiber design
Switching Capacity In Ma
<= 100 mA overload protection) || <= 100 mA short-circuit protection)
Lens Material
PMMA
Product Compatibility
glass or plastic fibre optics 1 mm or 2.2 mm
Type Of Output Signal
discrete
Status Led
stability 1 LED green) || output state 1 LED yellow)
Series
XUD
Operating Frequency - Minimum
1,000 Hz
Operating Temperature - Minimum
14 Degrees F
NEMA Enclosure Rating
1, 12, 13, 3, 4, 6
Operating Temperature - Maximum
131 Degrees F
Load Current - Maximum
100 mA
Operating Frequency - Maximum
5,000 Hz
Output Circuit Type
PNP
Output Circuit Number of Wires
3
DC Voltage Rating
10.8-26.4 V DC

Description

Fiber Optic Sensor, Display LED, Circuit Type PNP, Height 1.57 in, Width 0.39 in, Depth 2.56 in, Power Source 12 to 24V DC, Max. Load Current 100 mA, Operating Frequency 1000 to 5000 Hz, Response Time 0.1 msec, NEMA Rating 1, 12,13, 3, 4, 6, IP Rating IP65, Operating Temp. Range 13 Degrees to 131 Degrees F, Electrical Connection M8 Connector, Standards CE, cULus
