  11. Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded

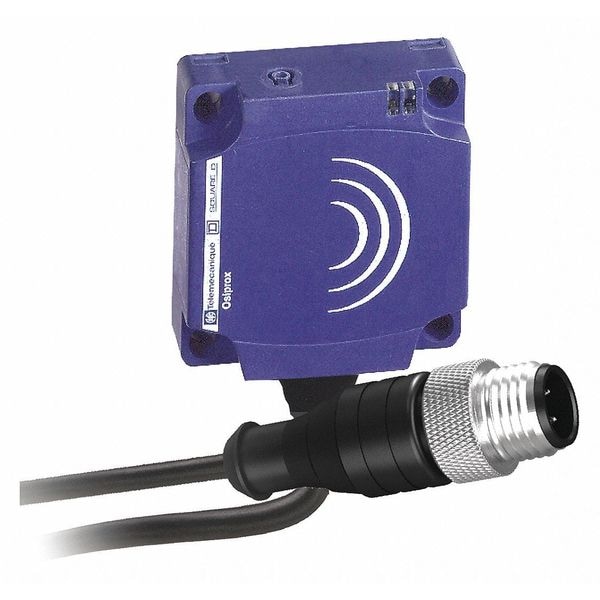

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded XS8C1A1MAL01U20 - main

Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded

  • Mfr # XS8C1A1MAL01U20

  • Zoro # G2896512

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
40 mm
Width
40 mm
Depth
15 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8C1A1MAL01U20
Zoro #
G2896512
UPC #
785901509844
Country of Origin
France

Dimensions

Length
40 mm
Width
40 mm
Depth
15 mm
Overall Depth
40 mm
Overall Height
15 mm
Cable Length
0.15 m
Overall Width
40 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
1000 Hz
Max. Current Load
200mA
Standards
CCC, CE, CSA, Ecolab, RoHS, UL Listed
Description/Special Features
LED Indicator
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Electrical Connection
1/2 in Connector
Application
general purpose
Series
XS8
Maximum Voltage Drop
<5.5 V closed)
Body Type
fixed
Switching Capacity
5...200 mA DC || 5...300 mA AC
Storage Temp. Range
-40-85 °C
Supply Voltage Limits
20-264 V AC/DC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay First Up
10 ms
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Recovery
0.8 ms
Differential Travel
1...15% of Sr
Sensing Face Shielding
Shielded
Load Current - Maximum
300 mA
Operating Temperature - Maximum
158 Degrees F
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
1,000 Hz
Output Circuit Number of Wires
2
Number of Pins
3
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
AC/DC-Type
NEMA Enclosure Rating
4X
DC Voltage Rating
24-240V DC
Style
Inductive, Rectangular
Output Circuit Contact Form
NO
Body Material
PBT
Sensing Distance - Maximum
25 mm
AC Voltage Rating
24-240V AC
Electrical Installation Type
Direct Connector

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 1000 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 25 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material PBT, Length 40 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
