  11. Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded

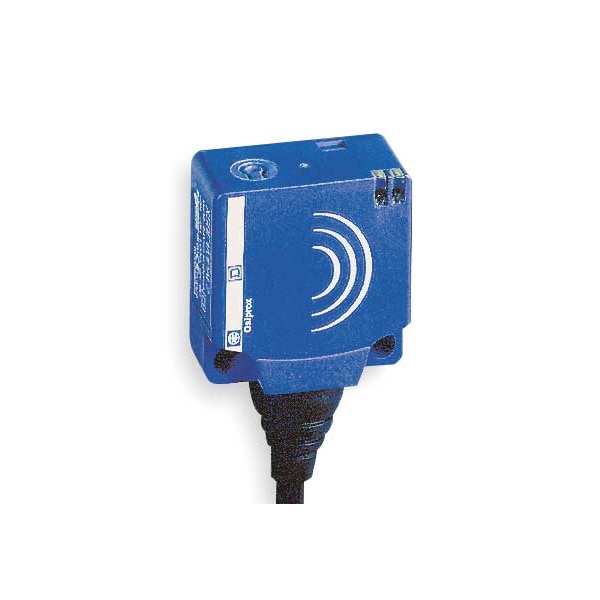

Telemecanique Sensors Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded XS8E1A1MAL01U20 - main

Inductive, Rectangular Proximity Sensor, PBT, 0.15 m, 1/2 in Connector, 2 Wires, Shielded

  • Mfr # XS8E1A1MAL01U20

  • Zoro # G1399973

product price: $114.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Length
26 mm
Width
26 mm
Depth
13 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8E1A1MAL01U20
Zoro #
G1399973
UPC #
785901678724
Country of Origin
France

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm
Overall Width
26 mm
Overall Height
13 mm
Cable Length
0.15 m
Overall Depth
26 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
2000 Hz
Standards
CCC, CE, CSA, Ecolab, RoHS, UL Listed
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
200mA
Description/Special Features
LED Indicator
IP Rating
IP67
Electrical Connection
1/2 in Connector
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Series
XS8
Supply Voltage Limits
20-264 V AC/DC
Body Type
fixed
Maximum Voltage Drop
<5.5 V closed)
Switching Capacity
5...200 mA AC/DC
Maximum Delay Recovery
0.8 ms
Storage Temp. Range
-40-85 °C
Maximum Delay Response
0.3 ms
Application
general purpose
Maximum Delay First Up
10 ms
Differential Travel
1...15% of Sr
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Output Circuit Number of Wires
2
AC Voltage Rating
24-240V AC
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
AC/DC-Type
Operating Temperature - Minimum
-13 Degrees F
Body Material
PBT
NEMA Enclosure Rating
4X
Sensing Distance - Maximum
15 mm
Style
Inductive, Rectangular
Load Current - Maximum
200 mA
DC Voltage Rating
24-240V DC
Output Circuit Contact Form
NO
Number of Pins
3
Includes Indicator Lights
Indicator Lights Included
Sensing Face Shielding
Shielded
Electrical Installation Type
Prewired Cable
Switching Frequency
2,000 Hz

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 2000 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material PBT, Length 26 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
