  11. Inductive Sensor 58Vdc 200Ma Xs
This item is Discontinued.

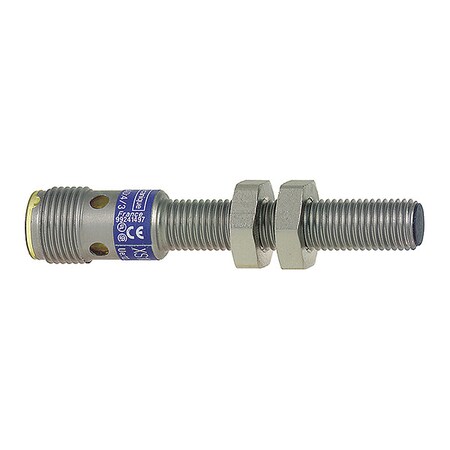

Telemecanique Sensors Inductive Sensor 58Vdc 200Ma Xs XS508BLPAM12

Inductive Sensor 58Vdc 200Ma Xs (Discontinued)

  • Mfr # XS508BLPAM12
  • Zoro # G0859665
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS508BLPAM12
Zoro #
G0859665
UPC #
785901444251
Country of Origin
France

Dimensions

Length
62 mm
Overall Height
62 mm

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Cylindrical M8
Measurement Range
0 to 1.2 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 48V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
1.5 mm
Proximity Sensor Electrical Connection
Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
Stainless Steel 303; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
Operating Temp. Range
-25 to 70 Degrees C
Electrical Connection
M12
Standards
CE, CSA, REACH, RoHS, UL Listed
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
IP Rating
IP67
Series
XS5
Maximum Delay Response
0.1 ms
Maximum Voltage Drop
<2 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Differential Travel
1...15% of Sr
Storage Temp. Range
-40-85 °C
Body Type
fixed
Application
general purpose
Supply Voltage Limits
10-58 V DC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Maximum Delay Recovery
0.1 ms
Maximum Delay First Up
10 ms
Output Circuit Contact Form
NO
Sensing Method
Inductive
Operating Temperature - Maximum
158 Degrees F
Load Current - Maximum
10 mA
Features
18 months Warranty, Yellow LED Output Indication
Sensing Distance - Maximum
2 mm
Body Material
Stainless Steel
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Type
PNP
Switching Frequency
5,000 Hz

Description

Inductive Proximity Sensor, IP Rating IP67, Standards CE, CSA, REACH, RoHS, UL Listed
