  15. Limit Switch Head, Rotary, Side, .89 in.-lb

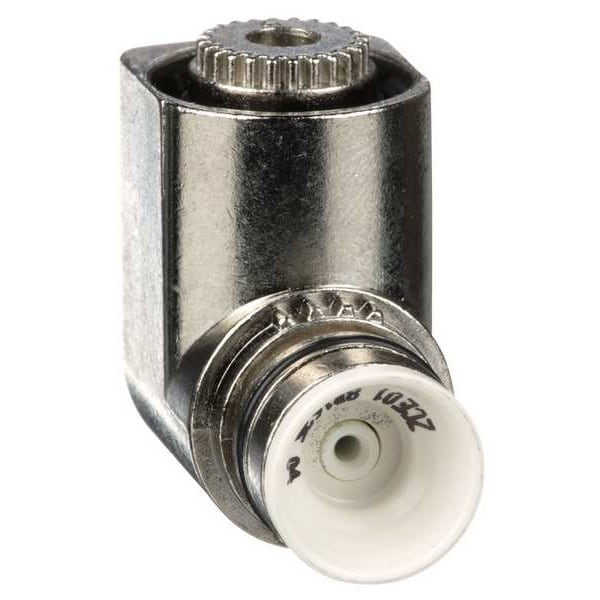

Telemecanique Sensors Limit Switch Head, Rotary, Side, .89 in.-lb ZCE01 - main

Limit Switch Head, Rotary, Side, .89 in.-lb

  • Mfr # ZCE01

  • Zoro # G3123714

product price: $17.15
/ea

Key Features

For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Movement
Omnidirectional
Actuator Type
Rotary
Actuator Location
Side
Operating Force
0.89 in-lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCE01
Zoro #
G3123714
UPC #
785901290483
Country of Origin
Indonesia

Dimensions

Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Movement
Omnidirectional
Actuator Type
Rotary
Actuator Location
Side
Operating Force
0.89 in-lb
Operating Temp.
-25 Degrees to 70 Degrees F
Description/Special Features
Momentary
Actuator Style
Rotary Lever
Travel
0.31 in
Associated Lever
ZCY45 || ZCY53 || ZCY44 || ZCY69 || ZCY46 || ZCY18 || ZCY49 || ZCY26 || ZCY81 || ZCY22 || ZCY23 || ZCY91 || ZCY48 || ZCY39 || ZCY17 || ZCY12 || ZCY16 || ZCY25 || ZCY15 || ZCY59 || ZCY54 || ZCY55 || ZCY19
Device Short Name
ZCE
Type Of Approach
lateral approach, 2 directions
Associated Body
ZCMD41L5 || ZCMD39L2 || ZCT26P16 || ZCMD69C12 || ZCT28N12 || ZCD21 || ZCMD61C12 || ZCP25 || ZCT28P16 || ZCD37 || ZCT25G11 || ZCP21 || ZCMD25L5 || ZCMD39L5 || ZCT28G11 || ZCT26G11 || ZCMD37L5 || ZCMD81L5 || ZCT27P16 || ZCP29M12 || ZCP31 || ZCP21M12 || ZCP37 || ZCMD25L2 || ZCMD21M12 || ZCT27N12 || ZCMD21L08R12 || ZCD26 || ZCT25P16 || ZCMD21L08U78 || ZCMD41L1 || ZCMD37L1 || ZCP27 || ZCMD37L2 || ZCMD41L2 || ZCP28 || ZCT21P16 || ZCD39 || ZCMD21C12 || ZCMD21L1 || ZCD28 || ZCT21G11 || ZCMD61M12 || ZCP35 || ZCD31 || ZCMD25L1 || ZCP26 || ZCT26N12 || ZCMD39L1 || ZCP29 || ZCD25 || ZCT21N12 || ZCD29M12 || ZCD21M12 || ZCMD81L2 || ZCMD21L5 || ZCP39 || ZCMD81L1 || ZCMD29L1 || ZCT27G11 || ZCD29 || ZCMD29L5 || ZCD27 || ZCMD21L2 || ZCMD29C12 || ZCMD29L2 || ZCT25N12 || ZCD35
Environmental Characteristic
standard environment
Product Or Component Type
limit switch head
Ambient Air Temperature For Operation
-25-70°C
Product Compatibility
XCKD || XCKP || XCKT || XCMD
Head Type
rotary head
Type Of Operator
without operating lever spring return metal
Movement Of Operating Head
rotary
Ambient Air Temperature For Storage
-40-70°C
Positive Opening
with
Series Name
standard format
Standards
CCC, CSA, IEC, UL Listed
IP Rating
Not Rated
Directional Movement
Omnidirectional
Compatible with Series
XCKD, XCKP, XCKT, XCMD
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Action
Momentary
NEMA Enclosure Rating
Not Rated
Includes Actuator
No Actuator Included
Operating Torque
0.89 in-lb

Description

Limit Switch Head, Actuator Style Rotary Lever, Actuator Location Side, Actuator Length Not Applicable, Travel 0.31 in, Movement Omnidirectional, Operating Force 0.89 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, IP Rating Not Rated, Standards CCC, CSA, IEC, UL Listed, For Use With Mfr. No. XCKD, XCKP, XCKT, XCMD
