Limit Switch Parts

Limit Switch Lever Arm

-40-70°C

3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A

XCKM

0.25 mOhm IEC 60255-7 category 3

1 1 position

-25-70°C standard environment

2

5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C

(21-22)NC || (13-14)NO

fixed

with

screw-clamp terminals 1 x 0.34...2 x 1.5 mm²

IP66

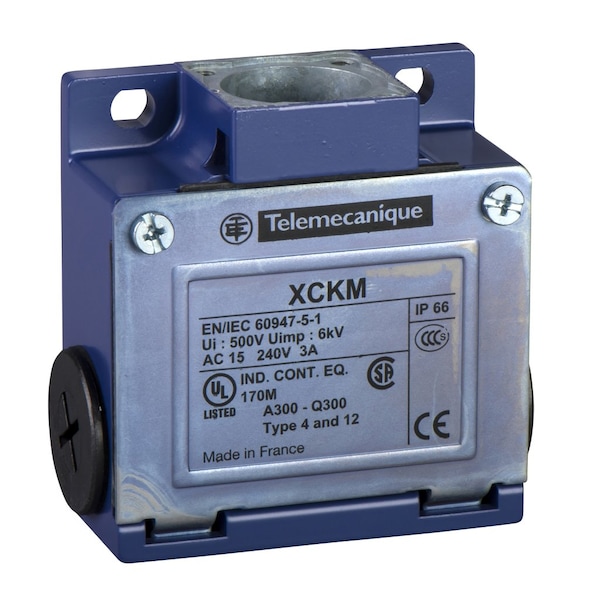

limit switch body

standard format

10A

1 NC + 1 NO

metal

10 A cartridge fuse gG

snap action

ZCKM

ZCKD06 || ZCKD16 || ZCKD219 || ZCKD08 || ZCKD21 || ZCKD05 || ZCKD81 || ZCKD23 || ZCKD239 || ZCKD10 || ZCKD41 || ZCKD15 || ZCKD029 || ZCKD59 || ZCKD02 || ZCKD17 || ZCKD109 || ZCKD91

500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block

0.01 m/min

3 entries tapped for M20 x 1.5 cable gland

silver plated contacts

standard environment

6 kV IEC 60664 || 6 kV IEC 60947-1

IK05
