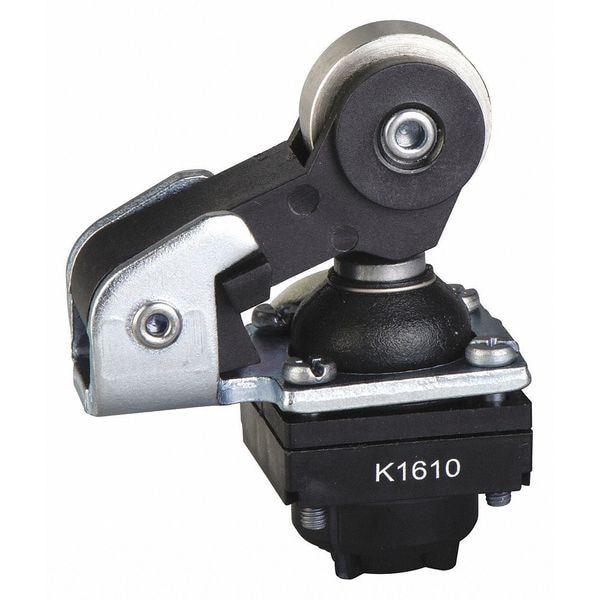

Telemecanique Sensors Limit Switch ZCKD23 - main

Limit Switch

  • Mfr # ZCKD23

  • Zoro # G0560981

product price: $62.45
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Top
Actuator Length
2.13 in
Head Material
plastic
IP Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKD23
Zoro #
G0560981
UPC #
785901646730
Country of Origin
Multiple

Dimensions

Actuator Length
2.13 in

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Top
Head Material
plastic
IP Rating
Not Rated
Head Type
plunger head
Action
Momentary
NEMA Enclosure Rating
Not Rated
Compatible with Series
XCKL, XCKM
Includes Actuator
Actuator Included
Directional Movement
Linear
Movement Of Operating Head
rotary || linear
Product Or Component Type
limit switch head
Product Compatibility
XCKM || XCKL
Type Of Approach
lateral approach, 1 direction
Environmental Characteristic
standard environment
Associated Body
ZCKMD37H7 || ZCKMD31H29 || ZCKM6H29 || ZCKM1H29 || ZCKMD37H29 || ZCKM9 || ZCKM8H7 || ZCKL5H7 || ZCKL6 || ZCKM6 || ZCKLD39 || ZCKL1 || ZCKM1H7 || ZCKM5 || ZCKM8H29 || ZCKLD37H7 || ZCKL1H7 || ZCKLD39H7 || ZCKM6H7 || ZCKM1 || ZCKMD35H29 || ZCKL7H7 || ZCKMD39 || ZCKM8 || ZCKMD31H7 || ZCKMD39H29 || ZCKLD35 || ZCKMD37 || ZCKM7 || ZCKLD37 || ZCKMD39H7 || ZCKM9H29 || ZCKMD31 || ZCKL5 || ZCKL6H7 || ZCKLD31H7 || ZCKMD35 || ZCKM7H29 || ZCKM5H29 || ZCKLD35H7 || ZCKMD35H7 || ZCKL8 || ZCKM5H7 || ZCKL7 || ZCKLD31 || ZCKL8H7 || ZCKM7H7
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-70°C
Positive Opening
with
Type Of Operator
roller lever plunger spring return metal
Switch Actuation
by 30° cam
Series Name
standard format
Device Short Name
ZCKD

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Top, Actuator Length 2.13 in, IP Rating Not Rated
