- Item

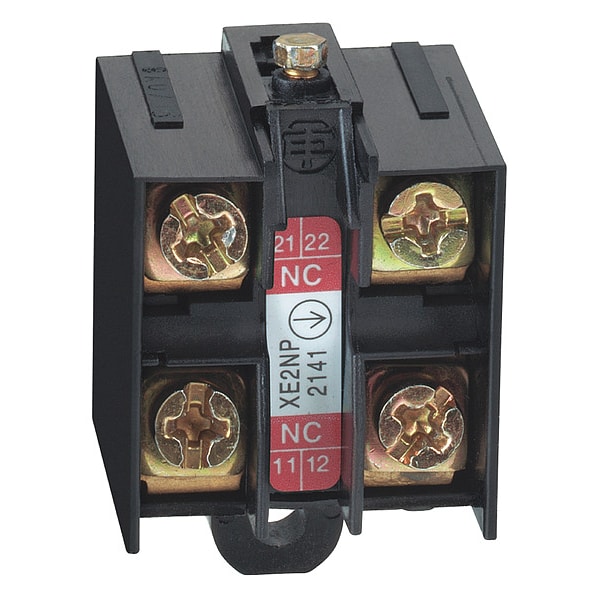

- Limit Switch Contact Block
- IP Rating
- Not Rated
- DC Contact Rating
- 0.27 A @ 250 V
- AC Contact Rating
- 3 A @ 240 V
- Contact Form
- 2NC
- Electrical Connection
- Screw Terminal
- Compatible with Manufacturer Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Indicating Light
- No Indicating Light Included
- Compatible with Series
- XCKD, XCKJ, XCKL, XCKM, XCKP, XCKS
- Contacts Insulation Form
- Zb
- Contact Operation
- slow-break, simultaneous
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
- Contacts Type And Composition
- 2 NC
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q300, DC-13 (Ue = 250 V), Ie = 0.27 A EN/IEC 60947-5-1 appendix A
- Minimum Actuation Speed
- 6 m/min
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- Series Name
- standard format
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
- Device Short Name
- XE2N
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Product Compatibility
- XCKP || XCKM || XCKJ || XCKD || XCKS || XCKL
- Contacts Material
- silver plated contacts
- Associated Body
- ZCKJ7 || ZCKS7 || ZCKL7 || ZCD27 || ZCKJ7D || ZCKM7 || ZCP27
- Product Or Component Type
- limit switch contact block
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Positive Opening
- with
- Number Of Poles
- 2
- Compatible Manufacturer Part Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible Manufacturer Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible with Manufacturer Model No.
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible with Mfr. Model No.
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- For Use with Mfr Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- For Use With Mfr. Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible Pump Manufacturer Part Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible Mfr. Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- For Manufacturer Part Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
- Compatible with Mfr. Model Number
- ZCD27, ZCKJ7, ZCKJ7D, ZCKL7, ZCKM7, ZCKS7, ZCP27
