  6. Lqd Lvl Swch, Hrzntl, 250F, ClsOnRse, SS

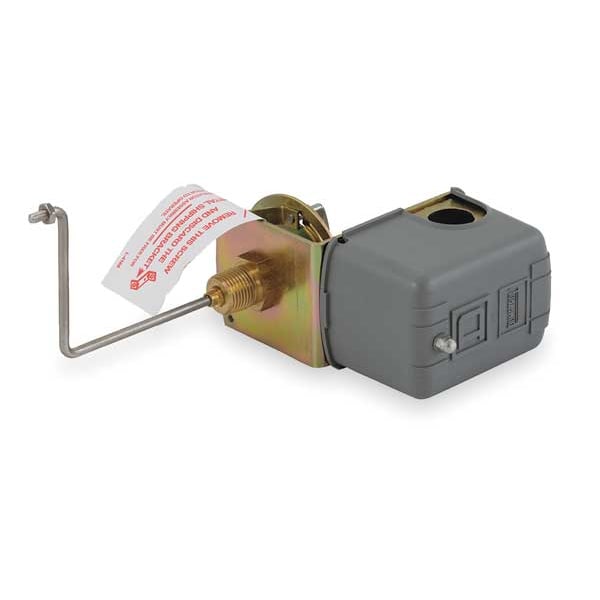

Telemecanique Sensors Lqd Lvl Swch, Hrzntl, 250F, ClsOnRse, SS 9037HG36F3LZ20 - main

Lqd Lvl Swch, Hrzntl, 250F, ClsOnRse, SS

  • Mfr # 9037HG36F3LZ20

  • Zoro # G3153997

product price:  $148.99
/ea
Free Shipping & Returns

Key Features

Switch Function
Close On Rise
Mounting
Side
Float Travel
4 1/2 in
NEMA Rating
1
Tank Connection Size
2-1/2 in MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9037HG36F3LZ20
Zoro #
G3153997
UPC #
094705639320
Country of Origin
Mexico

Dimensions

Tank Connection Size
2-1/2 in MNPT
Overall Length
16.06 in
Height
5.98 in
Stem Length
4.37 in
Float Length
7.13 in
Float Dia.
2.58 in
Conduit Size
3 1/2 in
Width
2.88 in
Overall Height
5.98 in
Stem Thread Size
2 1/2 in MNPT
Overall Width
2.88 in
Manufacturer Warranty Length
18 mo
Float Diameter
2.58 in

Details

Item
Liquid Level Switch
Switch Function
Close On Rise
Mounting
Side
Float Travel
4 1/2 in
NEMA Rating
1
Max. Pressure
50 PSI
Operating Temp. Range
250 Degrees F Max
Float Material
Stainless Steel
HP @ 3 Phase - 240V
5 hp
Features
High-Temperature, Viton Packing
Max. Voltage
475 V
Float Position
Left
Standards
CE, CSA File LR25490, UL File E12158, UL 50, UL 508
HP @ 1 Phase - 240V
3 hp
Contact Form
DPST-2NC
Max. Current
600 A
Includes
Viton Packing - No Float - No Bushing
Electrical Connections
Screw Clamp
Float Rod Angle
90 Degrees
Body Material
Steel
HP @ 1 Phase - 120V
2 hp
Stem Material
Stainless Steel
Enclosure Material
polypropylene or equivalent
Horsepower @ Three Phase - 240V AC
5 hp
Proof Pressure
50 psi
Operating Temperature - Maximum
220 Degrees F
Series
9037H
Horsepower @ Single Phase - 240V AC
3 hp
NEMA Enclosure Rating
1
Electrical Connection
Screw Clamp
Mounting Style
Closed Tank Vertical
Voltage Rating - Maximum
575 V
Minimum Media Specific Gravity
0.85
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Minimum
-22 Degrees F
Product Destination
for closed tank
Mechanical Durability
300 cycles
Ambient Air Temperature For Storage
-22-220°F
Product Certifications
UL listed file E12158 || CSA file LR25490
Short-Circuit Protection
20 A cartridge fuse gG
Terminals Description Iso N°1
line-load-load-line
Product Specific Application
liquid level control
Product Or Component Type
float switch
Device Application
closed tank
Factory Modification
omit 2.5 inch bushing and float
Nema Degree Of Protection
NEMA 1 UL 50
Float Movement
2.5...5 in adjustable
[Ui] Rated Insulation Voltage
575 V UL 508
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Cable Entry Number
3 knock-outs for 1/2" conduit UL 508
Terminal Block Type
4 terminals
Local Signalling
with external pointer
Maximum Operating Rate
60 cyc/mn
Controlled Fluid
fresh water specific gravity of 0.85 in or higher 0-250°F || sea water specific gravity of 0.85 in or higher 0-250°F || hydraulic oil specific gravity of 0.85 in or higher 0-250°F || corrosive fluid specific gravity of 0.85 in or higher 0-250°F
Materials In Contact With Fluid
stainlesss steel 304 || stainless steel 316 || viton || cast iron || yellow brass
Ambient Air Temperature For Operation
-22-220°F
Contacts Type And Composition
2 NC, snap action, DPST-DB, Form YY
Kit Composition
float || rod || float switch
Operating Position
vertical position only
Contact Operation
contacts close on liquid rise
Device Mounting
screw-in bushing
Device Short Name
9037H
Electrical Circuit Type
power circuit
Electrical Durability
100 cycles 60 cyc/mn

Description

Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 4 1/2 in, NEMA Rating 1, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range 250 Degrees F Max, Overall Length 16.06 in, Float Material Stainless Steel, Float Length 7.13 in, Float Dia. 2.58 in, Stem Material Stainless Steel, Stem Length 4.37 in, Height 5.98 in, Width 2.88 in, Contact Form DPST-2NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp
