  6. Lqd Lvl Swch, Vrtcl Opn Tnk, Close On Rise

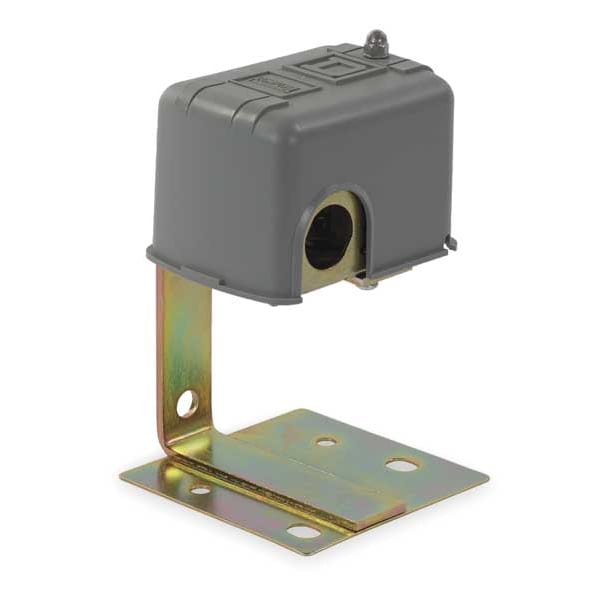

Telemecanique Sensors Lqd Lvl Swch, Vrtcl Opn Tnk, Close On Rise 9036FG30 - main

Lqd Lvl Swch, Vrtcl Opn Tnk, Close On Rise

  • Mfr # 9036FG30

  • Zoro # G1037635

product price:  $30.85
/ea

Key Features

Switch Function
Close On Rise
Mounting
Open Tank
Float Travel
1 1/4 in
NEMA Rating
1
VA Rating
460VCA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9036FG30
Zoro #
G1037635
UPC #
785901009207
Country of Origin
Mexico

Dimensions

Overall Length
4.38 in
Float Dia.
7 in
Height
4.5 in
Conduit Size
2 7/8 in
Float Length
7 in
Width
2.55 in
Overall Width
2.55 in
Manufacturer Warranty Length
18 mo
Overall Height
4.5 in
Float Diameter
7 in

Details

Item
Open Liquid Level Switch
Switch Function
Close On Rise
Mounting
Open Tank
Float Travel
1 1/4 in
NEMA Rating
1
VA Rating
460VCA
Operating Temp. Range
-22 Degrees to 220 Degrees F
HP @ 3 Phase - 240V
5 hp
Body Material
Polypropylene
Electrical Connections
Screw Clamp
HP @ 1 Phase - 240V
3 hp
Max. Current
600 A
Features
(2) 0.88 in Cable Entries with 0.84 in Across Flats
Contact Form
DPST-2NC
Standards
CSA File No.LR25490, UL 508, UL E12158
Float Position
Below
Float Material
Stainless Steel
Max. Voltage
600
Amps
10 A
HP @ 1 Phase - 120V
2 hp
Enclosure Material
polypropylene or equivalent
Float Rod Angle
Vertical
Product Type
Open Liquid Level Switch
Series
9036FG
Horsepower @ Single Phase - 240V AC
3 hp
Electrical Connection
Screw Clamp
Minimum Media Specific Gravity
0.85
Voltage Rating - Maximum
575 V AC
Mounting Style
Open Tank Vertical
Horsepower @ Single Phase - 120V AC
2 hp
NEMA Enclosure Rating
1
Operating Temperature - Maximum
220 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Current Rating
600 A
Operating Temperature - Minimum
-22 Degrees F
Terminals Description Iso N°1
line-load-load-line
Local Signalling
without
Maximum Operating Rate
60 cyc/mn
Electrical Circuit Type
power circuit
Materials In Contact With Fluid
aluminium || polystyrene || zinc plated steel or equivalent || nylon
Device Short Name
9036FG
Electrical Durability
100 cycles 60 cyc/mn
Terminal Block Type
4 terminals
Product Destination
for open tank or sump
Mechanical Durability
300 cycles
Controlled Fluid
fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher
Kit Composition
rod and float are to be choosen in accessories || float switch
Nema Degree Of Protection
NEMA 1 UL 50
Ambient Air Temperature For Operation
-22-220°F
Ambient Air Temperature For Storage
-22-220°F
Contact Operation
contacts close on liquid rise
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Force Up To Trip
16 ozf
Product Or Component Type
float switch
Device Application
open tank pedestal style
Device Mounting
pedestal
Contacts Type And Composition
2 NC, snap action, DPST-DB, Form YY
Product Certifications
CSA file LR25490 || UL listed file E12158
Short-Circuit Protection
20 A cartridge fuse gG
Operating Position
vertical position only
[Ui] Rated Insulation Voltage
575 V UL 508
Cable Entry Number
2 0.88 in cable entries with 0.84 in across flats UL 508
Product Specific Application
liquid level control
Force Down To Trip
16 ozf
Factory Modification
without
Float Movement
4...31 in adjustable

Description

Open Liquid Level Switch, 10 A Amps, Contact Form DPST-2NC, VA Rating 460VCA, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 4.38 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 2.55 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Polypropylene
