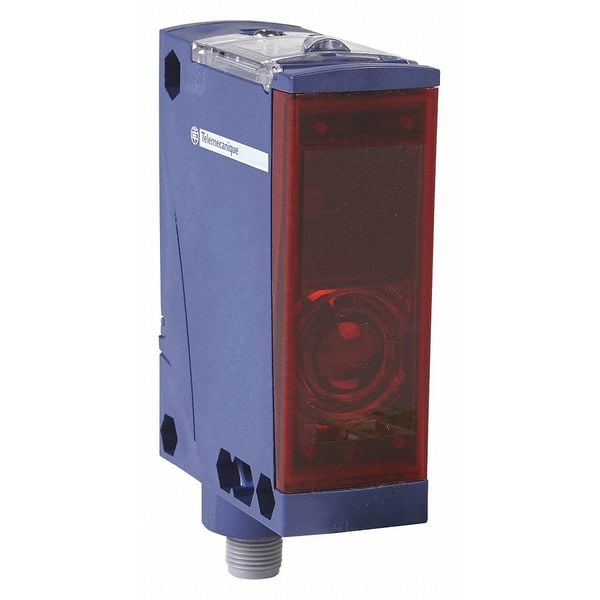

Telemecanique Sensors Multimode Photoelectric Sensor, M12, Right Angle, Rectangular, Selectable Light On/Dark On, NPN and PNP XUX0AKSAM12 - main

Multimode Photoelectric Sensor, M12, Right Angle, Rectangular, Selectable Light On/Dark On, NPN and PNP

  • Mfr # XUX0AKSAM12

  • Zoro # G0482702

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Height
92 mm
Width
1.20"
Depth
3.43"
Material
plastic
Max. Load Current
100 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUX0AKSAM12
Zoro #
G0482702
UPC #
785901582489
Country of Origin
France

Dimensions

Height
92 mm
Width
1.20"
Depth
3.43"
Length
4.49"
Depth - Rectangular Photoelectric Sensor
87 mm
Height - Rectangular Photoelectric Sensor
114 mm
Width - Rectangular Photoelectric Sensor
30 mm
Overall Height
92 mm
Overall Depth
77 mm
Overall Width
31 mm

Details

Item
Photoelectric Sensor
Material
plastic
Max. Load Current
100 mA
Max. Sensing Distance
60m
Response Time
25 msec
Features
Diffuse, Background Suppression, Overload Protection, Polarized Retro-Reflective, Programmable, Retro-Reflective, Reverse Polarity Protection, Short Circuit Protection
Electrical Connection
M12
Max. Sensing Distance - Rectangular Photoelectric Sensor
60 m
Body Material
PBT
Operating Frequency
250 Hz
Standards
CE, CSA Certified, IEC 60529, RoHS, UL Listed
IP Rating
IP65, IP67
Sensing Method
Multimode
Power Requirement
12 to 24VDC
Power Requirement - Rectangular Photoelectric Sensor
12 to 24V DC
Light Source
Infrared LED
Operating Temp. Range
-25 Degrees to 55 Degrees C
Current Consumption
<= 35 mA no-load
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Series Name
general purpose multimode
Enclosure Material
PBT
Detection System
multimode
Maximum Voltage Drop
<1.5 V closed state)
Maximum Delay Response
2 ms
Maximum Sensing Distance
15 m polarised reflex || 3 m diffuse || 60 m thru beam || 1.3 m diffuse with background suppression
Maximum Delay Recovery
2 ms
Lens Material
PMMA
Switching Frequency
250 Hz
Output Type
solid state
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Operation
-25-55°C
Type Of Output Signal
discrete
Add On Output
with alarm output, <= 100 mA overload and short-circuit protection
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Electronic Sensor Type
photo-electric sensor
Emission
infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Sensor Name
XUX
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
[Sn] Nominal Sensing Distance
11-11 m polarised reflex need reflector XUZC50 || 40-40 m thru beam need a transmitter XUX0AKSAM12T || 2-2 m diffuse || 1.3-1.3 m diffuse with background suppression
Maximum Delay First Up
200 ms
Supply Circuit Type
DC
Status Led
1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
Sensor Design
compact 92 x 71
Ambient Air Temperature For Storage
-40-70°C
Setting-Up
self-teaching
Electrical Installation Type
Direct Connector
Operating Temperature - Minimum
-13 Degrees F
Style
Rectangular
Orientation
Right Angle
Sensing Distance - Maximum
11 m
Output Circuit Type
NPN and PNP
Number of Pins
4
Includes Indicator Lights
Indicator Lights Included
Series
XU
Operating Mode
Selectable Light On/Dark On
AC Voltage Rating
24-240V AC
Load Current - Maximum
100 mA
Operating Temperature - Maximum
131 Degrees F
Sensing Distance - Minimum
0 m
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
3

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
