This item is Discontinued.

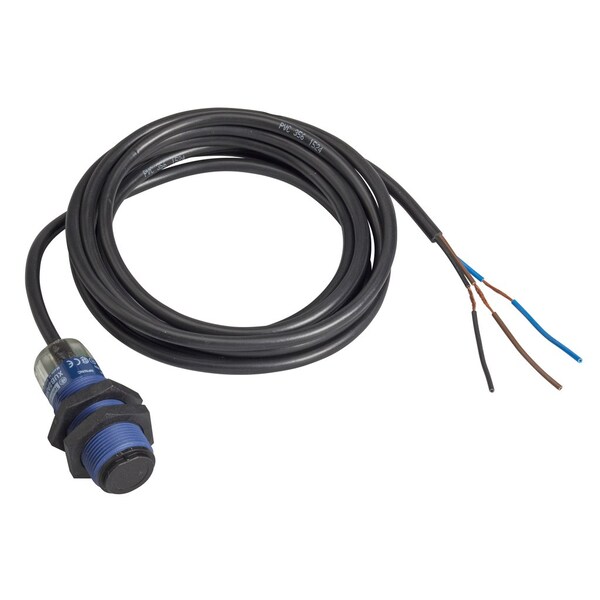

Telemecanique Sensors Photo-electric sensor-XUB-polarised XUB9APBNL2

Photo-electric sensor-XUB-polarised (Discontinued)

  • Mfr # XUB9APBNL2
  • Zoro # G4055962
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUB9APBNL2
Zoro #
G4055962
UPC #
-
Country of Origin
France

Dimensions

Diameter
18 mm
Length
62 mm
Cable Length
2 m

Details

Item
Photo-electric sensor - XUB - polarised
Material
plastic
Current Consumption
35 mA no-load
Electrical Connection
cable
Ambient Air Temperature For Operation
-25-55°C
Detection System
polarised reflex
[Sn] Nominal Sensing Distance
2-2 m polarised reflex need reflector XUZC50
Sensor Name
XUB
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Lens Material
PMMA
Line Of Sight Type
axial
Ip Degree Of Protection
IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
Add On Output
without
Discrete Output Type
PNP
Switching Frequency
<= 500 Hz
Status Led
1 LED yellow)output state
Emission
red polarised reflex
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Supply Circuit Type
DC
Maximum Voltage Drop
<1.5 V closed state)
Maximum Delay Response
1 ms
Ambient Air Temperature For Storage
-40-70°C
Maximum Sensing Distance
3 m polarised reflex
Type Of Output Signal
discrete
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Delay Recovery
1 ms
Sensor Design
cylindrical M18
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Enclosure Material
PBT
Maximum Delay First Up
15 ms
Product Certifications
UL || CE || CSA
Series Name
general purpose single mode
Electronic Sensor Type
photo-electric sensor
Supply Voltage Limits
10-36 V DC
Wire Insulation Material
PvR
Discrete Output Function
1 NC
Setting-Up
without sensitivity adjustment
Output Type
solid state
Wiring Technique
3-wire

Description

Photo-electric sensor - XUB - polarised
