  11. Photocell Label Sensor Pnp Npn M8 4P

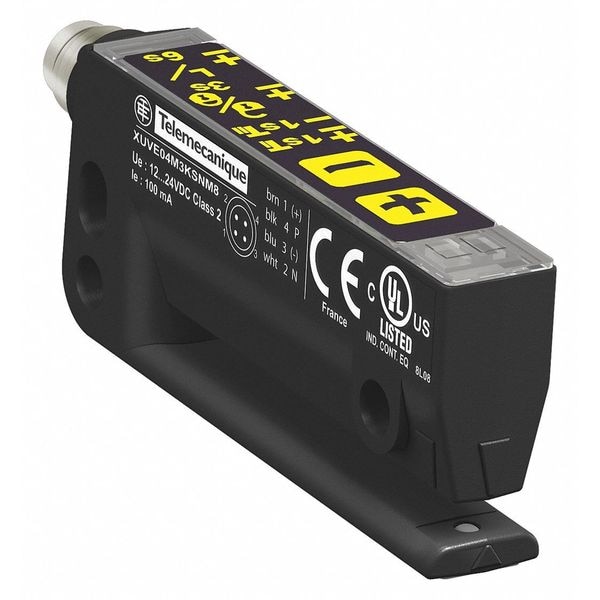

Telemecanique Sensors Photocell Label Sensor Pnp Npn M8 4P XUVE04M3KSNM8 - main

Photocell Label Sensor Pnp Npn M8 4P

  • Mfr # XUVE04M3KSNM8

  • Zoro # G0859559

product price: $134.99
/ea
Free Shipping & Returns

Key Features

Height
25 mm
Width
10 mm
Depth
64 mm
Material
PA (polyamide) 12
IP Rating
IP65
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUVE04M3KSNM8
Zoro #
G0859559
UPC #
785901103387
Country of Origin
France

Dimensions

Height
25 mm
Width
10 mm
Depth
64 mm
Overall Height
25 mm
Passage Width
3 mm
Minimum Label Length
2 mm
Passage Depth
40 mm
Overall Width
10 mm
Overall Depth
64 mm

Details

Item
Photoelectric Sensor
Material
PA (polyamide) 12
IP Rating
IP65
Body Material
Polyamide
Standards
CE, cULus, EU RoHS
Features
Overload Protection, Short Circuit Protection
Response Time
0.1 msec
Sensing Method
Through-Beam
Electrical Connection
M8
Discrete Output Function
2 NO/NC programmable
Product Specific Application
detection of labels
Maximum Delay First Up
30 ms
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Detection System
thru beam
Maximum Delay Recovery
0.1 ms
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Ambient Air Temperature For Storage
-30-80°C
Maximum Passing Speed Of Object
200 m/min
Setting-Up
numeric potentiometer
Status Led
output state 1 LED yellow) || adjustment mode and keypad locking 1 LED red)
Electronic Sensor Type
photo-electric sensor
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Maximum Voltage Drop
<2 V closed state)
Accuracy
+/- 0.05 mm 150 m/min
Sensor Design
fork
Wiring Technique
4-wire
Type Of Output Signal
discrete
Ambient Air Temperature For Operation
-20-60°C
Minimum Distance Between Labels
2 mm
Supply Circuit Type
DC
Emission
infrared
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Output Type
solid state
Lens Material
PC
Sensor Name
XUV
Enclosure Material
Polyamide
Switching Frequency
<= 10 kHz
Series Name
Application packaging
Maximum Delay Response
0.1 ms
[Sn] Nominal Sensing Distance
3-3 mm thru beam
Operating Temperature - Maximum
140 Degrees F
Style
Rectangular
Number of Pins
4
Operating Temperature - Minimum
-4 Degrees F
DC Voltage Rating
12-24V DC
Output Circuit Number of Wires
4

Description

Photoelectric Sensor
