  11. Photocell Sensor Transp Npn Nonc 2M Cabl
This item is Discontinued.

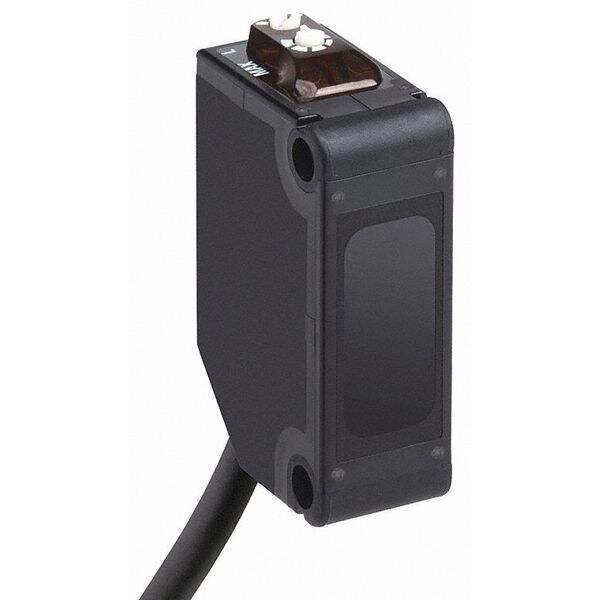

Telemecanique Sensors Photocell Sensor Transp Npn Nonc 2M Cabl XUMTANCNL2

Photocell Sensor Transp Npn Nonc 2M Cabl (Discontinued)

  • Mfr # XUMTANCNL2
  • Zoro # G0130144
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUMTANCNL2
Zoro #
G0130144
UPC #
-
Country of Origin
China

Dimensions

Height
33 mm
Width
11 mm
Depth
20 mm
Overall Height
33 mm
Length
11 mm
Cable Length
2 m
Overall Width
11 mm
Overall Depth
20 mm

Details

Item
Photoelectric Sensor
Material
plastic
Standards
CE, cURus, EU RoHS
Response Time
1 msec
Sensing Method
Retroreflective
Electrical Connection
cable
IP Rating
IP67
Body Material
PBT
Features
Overload Protection, Short Circuit Protection
Current Consumption
<= 10 mA no-load
Status Led
1 LED green)instability || 1 LED orange)output state
Discrete Output Type
NPN
Ip Degree Of Protection
IP67 IEC 60529
Product Certifications
CE || cURus
Type Of Output Signal
discrete
Maximum Delay First Up
100 ms
[Sn] Nominal Sensing Distance
2-2 m reflex need reflector XUZC50 || 1-1 m reflex need reflector XUZC50CR
Discrete Output Function
1 NO or 1 NC programmable
Sensor Design
miniature
Sensor Name
XUM
Product Specific Application
detection of transparent object
Electronic Sensor Type
photo-electric sensor
Lens Material
PC
Ambient Air Temperature For Storage
-30-70°C
Maximum Voltage Drop
<2 V closed state)
Emission
infrared reflex
Wiring Technique
3-wire
Immunity To Ambient Light
3000 lux natural light || 3000 lux incandescent light
Detection System
reflex
Series Name
Application packaging
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Setting-Up
sensitivity adjustment by potentiometer
Supply Circuit Type
DC
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Shock Resistance
50 gn 11 ms) IEC 60068-2-27
Maximum Delay Response
1 ms
Supply Voltage Limits
10-30 V DC
Vibration Resistance
20 gn +/- 1.5 mm 10-500 Hz) IEC 60068-2-6
Ambient Air Temperature For Operation
-25-55°C
Enclosure Material
PBT
Wire Insulation Material
PVC
Output Type
solid state
Style
Rectangular
Operating Temperature - Maximum
131 Degrees F
Product Type
Photoelectric Sensor
Operating Temperature - Minimum
-13 Degrees F
Electrical Installation Type
Prewired Cable

Description

Photoelectric Sensor
