  11. Photoelectric Sensor 18Mm Pnp Xub

This item is Discontinued.

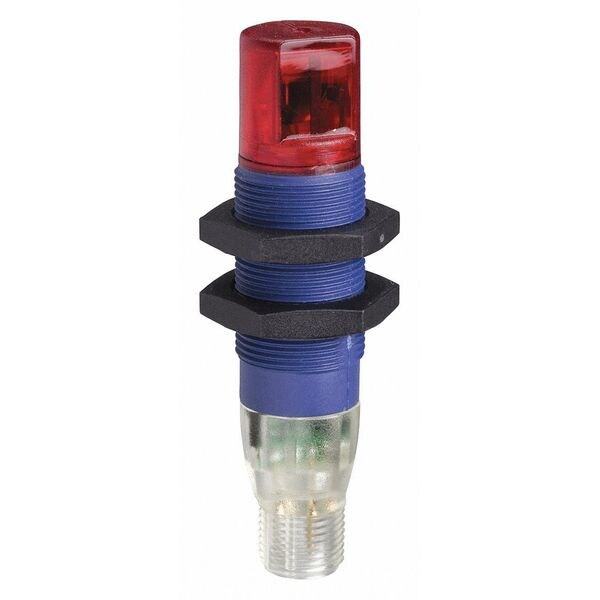

Telemecanique Sensors Photoelectric Sensor 18Mm Pnp Xub XUB2BPBWM12R

Photoelectric Sensor 18Mm Pnp Xub (Discontinued)

  • Mfr # XUB2BPBWM12R
  • Zoro # G0653978
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUB2BPBWM12R
Zoro #
G0653978
UPC #
785901510260
Country of Origin
France

Dimensions

Length
76 mm
Overall Height
76 mm
Diameter
18 mm
Overall Diameter
18 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor
Material
metal
Features
Double Insulation, Nickel Plated Brass Case
Electrical Connection
M12
Response Time
1 msec
Sensing Method
Through-Beam
Standards
CE, CSA, UL Listed
Body Material
Metal
IP Rating
IP65, IP67, IP69K
Current Consumption
35 mA no-load
Discrete Output Function
1 NC
Status Led
1 LED yellow)output state
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Maximum Delay Response
1 ms
Electronic Sensor Type
photo-electric sensor receiver
Switching Frequency
500 Hz
Discrete Output Type
PNP
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Sensing Distance
20 m thru beam
[Sn] Nominal Sensing Distance
15-15 m thru beam need a transmitter XUB2BKSWM12T
Supply Circuit Type
DC
Line Of Sight Type
90° lateral
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Output Type
solid state
Add On Output
without
Sensor Name
XUB
Wiring Technique
3-wire
Lens Material
PMMA
Type Of Output Signal
discrete
Ambient Air Temperature For Operation
-25-55°C
Supply Voltage Limits
10-36 V DC
Maximum Voltage Drop
<1.5 V closed state)
Setting-Up
without sensitivity adjustment
Enclosure Material
Nickel Plated Brass
Maximum Delay Recovery
1 ms
Ip Degree Of Protection
IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529 || IP69K double insulation DIN 40050
Sensor Design
cylindrical M18
Maximum Delay First Up
15 ms
Product Certifications
UL || CE || CSA
Detection System
thru beam
Emission
infrared thru beam
Series Name
general purpose single mode
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-24V DC
Number of Pins
4
Style
Cylindrical
Includes Indicator Lights
Indicator Lights Included
Load Current - Maximum
100 mA
Operating Temperature - Maximum
131 Degrees F
Output Circuit Type
PNP
Product Type
Photoelectric Sensor
Output Circuit Contact Form
1NC
Series
XUB
Sensing Distance - Maximum
20 m
Operating Temperature - Minimum
-13 Degrees F

Description

Photoelectric Sensor
