Shop TELEMECANIQUE SENSORS

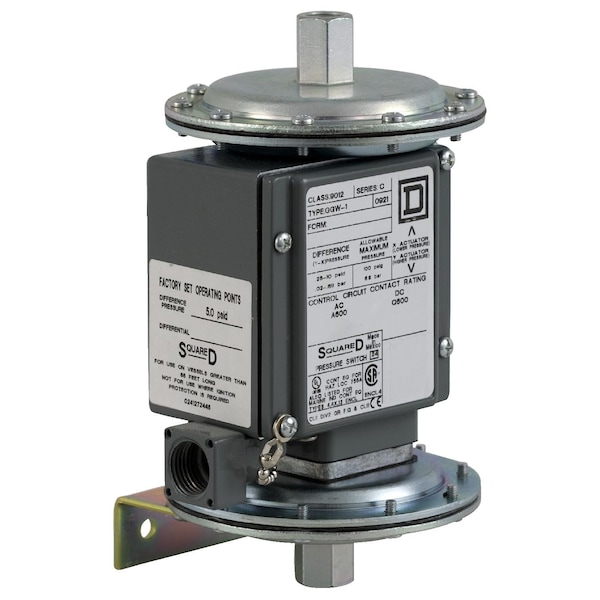

Pressure Switch, Standard, DPDT, 1/2" NPT, 0 to 75 psi Range, Aluminum

  • Mfr # 9012GGW21

  • Zoro # G0838087

product price:
$
1,059.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
DPDT
Pressure Connection Type
1/4" FNPT
Range
0 to 75 psi
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9012GGW21
Zoro #
G0838087
UPC #
785901048688
Country of Origin
Mexico
Item
Pressure Switch
Action
Standard
Contact Form
DPDT
Pressure Connection Type
1/4" FNPT
Range
0 to 75 psi
Housing Material
Aluminum
Factory On Setting
0 psi
Factory Off Setting
75 psi
Standards
UL 508; CSA C22.2 No 14; CE; CSA LR25490 class 3211 03
Pressure Switch Electrical Contact Form
DPDT
Max. Pressure
100 psi
Series
9012G
Pressure Switch Differential
0.25 to 10 psi
Electrical Connection
Screw-Clamp Terminal
Pressure Switch Port Type
(1) Port, 1/4-18 in FNPT
Temp. Range
-10 to 185 °F
Pressure Switch Range
0 to 75 psi
Material
Die cast aluminium alloy
Product Type
Water and Air Pressure Switch
Pressure - Maximum
100 psi
DC Contact Rating
0.22 A @ 125 V DC, 0.27 A @ 250 V DC
AC Contact Rating
3 A @ 240 V AC, 6 A @ 120 V AC
Wetted Materials
Nitrile (Buna-N), Zinc Plated Steel
NEMA Enclosure Rating
13, 4, 4X
Media Temperature - Minimum
-40 Degrees F
Compatible Media
Gas, Liquid
Features
2 Thresholds, Adjustable Scale
Actuator Style
Diaphragm
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-10 Degrees F
Pressure - Minimum
0 psi
Differential Pressure - Minimum
0.25 psi
Switch Structure
DPDT
Media Temperature - Maximum
250 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Differential Pressure - Maximum
10 psi

Description

Pressure Switch, Series 9012G, Standards CE, CSA C22.2 No 14, CSA LR25490 class 3211 03, IEC 58-2-27, IEC 68-2-6, UL 50, UL 508, AC Contact Rating 3 A @ 240 V AC, 6 A @ 120 V AC
