Shop TELEMECANIQUE SENSORS

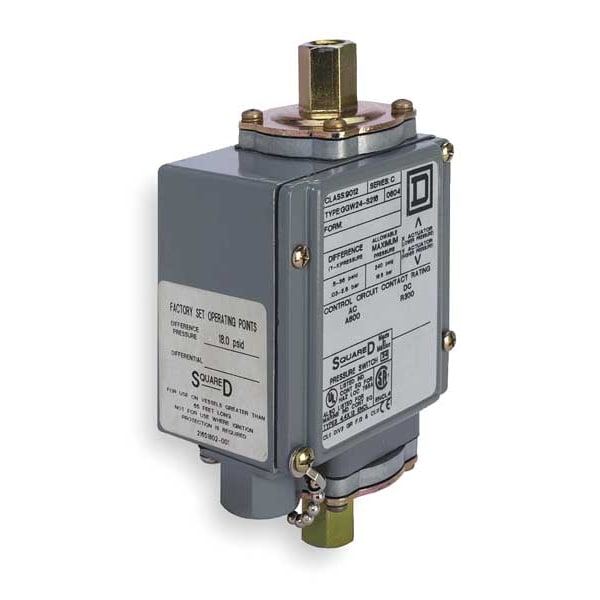

Pressure Switch, Standard, DPDT, 2 Ports, 1/4-18" FNPT, 0 to 175 psi Range, Aluminum

  • Mfr # 9012GGW24

  • Zoro # G0777305

product price:
$
994.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
DPDT
Number of Pressure Connection Ports
2
Pressure Connection Type
1/4" FNPT
Range
0 to 175 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9012GGW24
Zoro #
G0777305
UPC #
785901048695
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
3.5 in
Overall Depth
2.63 in
Overall Height
7.08 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPDT
Number of Pressure Connection Ports
2
Pressure Connection Type
1/4" FNPT
Range
0 to 175 psi
Housing Material
Aluminum
Factory On Setting
0 psi
Factory Off Setting
175 psi
Standards
CE, CSA C22.2, UL 508
Series
9012G
DC Contact Rating
0.11A @ 250V, 0.22A @ 125V
AC Contact Rating
10A @ 480V
Actuation Type
Diaphragm
Pressure Switch Electrical Contact Form
DPDT
Pressure Switch Port Type
2-Port 1/4-18 in FNPT
Max. Pressure
240 psi
Electrical Connection
Screw-Clamp Terminals
Pressure Switch Range
0 to 175 psi
Pressure Switch Differential
0.5 to 36 psi
Temp. Range
-10 to 185 °F
IP Rating
54
Material
Die cast aluminium alloy
Differential Pressure - Minimum
5 psi
Deadband Adjustability
Adjustable
Differential Pressure - Maximum
15 psi
Media Temperature - Maximum
250 Degrees F
Pressure - Maximum
175 psi
Pressure - Minimum
0 psi
Proof Pressure
240 psi
Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-10 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Operating Temperature - Maximum
185 Degrees F
Actuator Style
Diaphragm

Description

Pressure Switch, NEMA Rating 13, 4, 4X, Series 9012G, Temp. Range -10 Degrees to 185 Degrees F, Standards CE, CSA C22.2, UL 508, Special Features Nitrile (Buna-N) Diaphragm, Control Circuit Rated, Differential Pressure Switch, Water Tight, Dust Tight, Oil Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, AC Contact Rating 3 A @ 240 V, 6 A @ 120 V
