Shop TELEMECANIQUE SENSORS

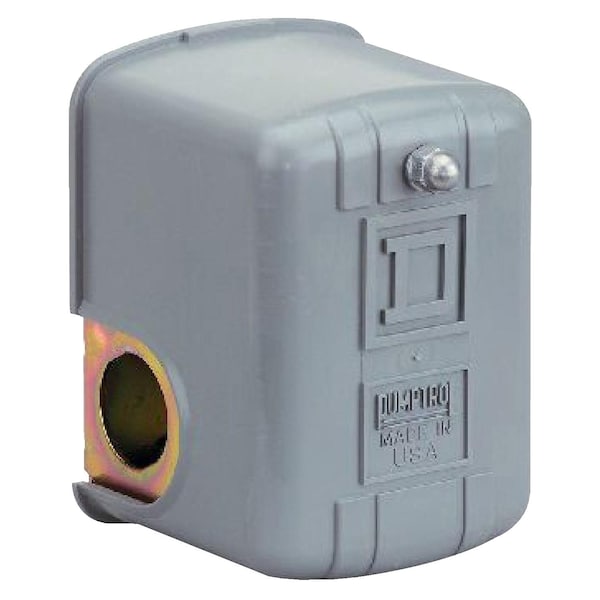

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 65 psi Range, Polypropylene

  • Mfr # 9013FSG2J21PC20

  • Zoro # G0838181

product price:  $32.95
/ea

Key Features

Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 65 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9013FSG2J21PC20
Zoro #
G0838181
UPC #
785901125037
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
2.78 in
Overall Height
2.8 in
Overall Depth
3.76 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 65 psi
Housing Material
Polypropylene
Factory On Setting
30 psi
Factory Off Setting
50 psi
Standards
CSA, NSF, UL
Electrical Connection
Screw-Clamp Terminals
IP Rating
IP20 (IEC 60529)
Pressure Switch Unloader
No
Burst Pressure
220 psi
Pressure Switch Port Type
(1) Port, 1/4 in FNPS
Features
Pumptrol
Phase
Single/Three
Pressure Switch Differential
15 to 30 psi
Temp. Range
-33 Degrees to 257 Degrees F
Pressure Switch Application
Water Pump
Pressure Switch Range
20 to 65 psi
Series
9013FS
Pressure Switch Factory On/Off Setting
30/50 psi
Manual Switch Action
None
Special Features
Mercury Free; Green Premium product
Pressure Switch Electrical Contact Form
DPST
HP
2 HP @ 23 HP @ 230V0V
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
Product Type
Water Pump Switch
Horsepower @ Single Phase - 240V AC
2 hp
Switch Function Configuration
None
Media Temperature - Minimum
-33 Degrees F
Horsepower @ Three Phase - 480V AC
1 hp
Differential Pressure - Minimum
30 psi
Horsepower @ Three Phase - 240V AC
3 hp
Pressure - Maximum
65 psi
Media Temperature - Maximum
257 Degrees F
Differential Pressure - Maximum
50 psi
Pressure - Minimum
5 psi
Horsepower @ Single Phase - 120V AC
1 1/2 hp
Actuator Style
Diaphragm
Operating Temperature - Minimum
-33 Degrees F
Pressure Switch Action Type
Standard
Unloader
No Unloader Included
Operating Temperature - Maximum
257 Degrees F
NEMA Enclosure Rating
1

Description

Water Pump Switch, Standard, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 30/50 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 20 to 65 psi, Pressure Switch Electrical Contact Form DPST, NEMA Rating 1, Series 9013FS, HP @ 1 Phase - 120V 1 1/2 hp, HP @ 1 Phase - 240V 2 hp, HP @ 3 Phase - 240V 3 hp, HP @ 3 Phase - 480V 1 hp, Temp. Range -33 Degrees to 257 Degrees F
