Shop TELEMECANIQUE SENSORS

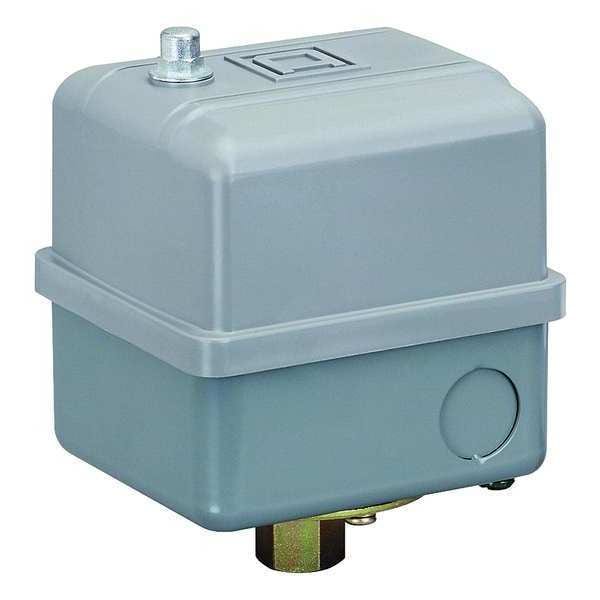

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 5 to 80 psi Range, Polypropylene

  • Mfr # 9013GSG2J20

  • Zoro # G1092436

CAD Available
product price:  $107.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
5 to 80 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9013GSG2J20
Zoro #
G1092436
UPC #
785901559887
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
3.44 in
Overall Height
5.4 in
Overall Depth
3.88 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
5 to 80 psi
Housing Material
Polypropylene
Factory On Setting
20 psi
Factory Off Setting
40 psi
Standards
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Series
9013GS
Pressure Switch Port Type
(1) Port, 1/4 in FNPS
Pressure Switch Factory On/Off Setting
20/40 psi
Temp. Range
-22 Degrees to 257 Degrees F
Pressure Switch Electrical Contact Form
DPST
Special Features
Nitrile (Buna-N) Diaphragm
Manual Switch Action
None
Pressure Switch Range
5 to 80 psi
Pressure Switch Differential
15 to 30 psi
Pressure Switch Unloader
No
Pressure Switch Application
Air Compressor and Water Pump
AC Contact Rating
10A @ 575V
Phase
Single/Three
Electrical Connection
Screw-Clamp Terminals
IP Rating
IP20 (IEC 60529)
Burst Pressure
300 psi
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
HP
3 HP @ 230V
Product Type
Water and Air Pressure Switch
Media Temperature - Maximum
257 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Horsepower @ Three Phase - 480V AC
5 hp
Media Temperature - Minimum
-33 Degrees F
Differential Pressure - Minimum
20 psi
Pressure - Minimum
5 psi
Switch Function Configuration
None
Actuator Style
Diaphragm
Horsepower @ Single Phase - 240V AC
3 hp
Pressure - Maximum
80 psi
Horsepower @ Single Phase - 120V AC
2 hp
Differential Pressure - Maximum
40 psi
CAD Available
Yes
Operating Temperature - Minimum
-33 Degrees F
Pressure Switch Action Type
Standard
DC Contact Rating
1 HP @ 115VDC, 1 HP @ 230VDC
NEMA Enclosure Rating
1
Operating Temperature - Maximum
257 Degrees F
Unloader
No Unloader Included

Description

Water and Air Pressure Switch, Air Compressor and Water Pump, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 20/40 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 5 to 80 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013GS, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 5 hp
