Shop TELEMECANIQUE SENSORS

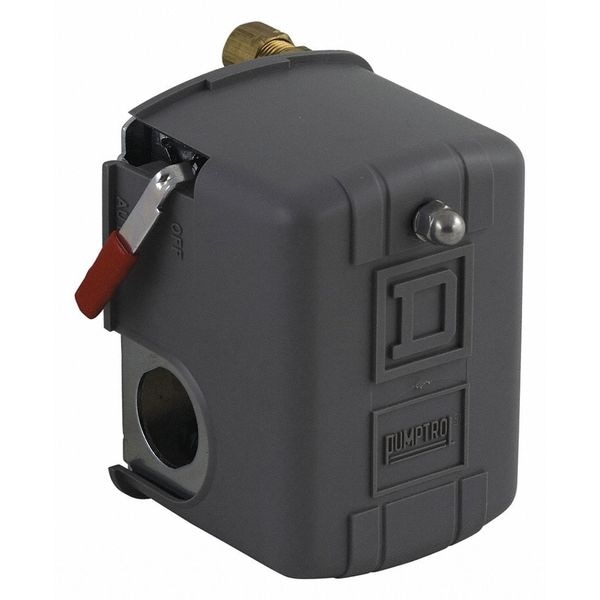

Pressure Switch, Standard, DPST, 4 Ports, 1/4" FNPS, 60 to 200 psi Range, Polypropylene

  • Mfr # 9013FHG54J59M1X

  • Zoro # G1502943

CAD Available
product price:
$
72.49
/ea

Key Features

CAD Drawing
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
(4) 1/4" FNPS
Range
60 to 200 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9013FHG54J59M1X
Zoro #
G1502943
UPC #
785901317227
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
3.1 in
Overall Height
4.45 in
Overall Depth
3.76 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
4
Pressure Connection Type
(4) 1/4" FNPS
Range
60 to 200 psi
Housing Material
Polypropylene
Factory On Setting
135 psi
Factory Off Setting
175 psi
Standards
ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
Pressure Switch Unloader
1/4 in Compression
Pressure Switch Factory On/Off Setting
135/175 psi
AC Contact Rating
10A @ 575V
Temp. Range
-22 Degrees to 257 Degrees F
Special Features
Nitrile (Buna-N) Diaphragm
Pressure Switch Differential
40 psi
Pressure Switch Application
Air Compressor
Series
9013FH
Pressure Switch Port Type
(4) Port, 1/4 in FNPS
Pressure Switch Range
60 to 200 psi
Pressure Switch Electrical Contact Form
DPST
Manual Switch Action
Auto/Off
Electrical Connection
Screw-Clamp Terminals
Phase
Single/Three
IP Rating
IP20 (IEC 60529)
Burst Pressure
220 psi
HP
3 HP @ 230V
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
Product Type
Air Compressor Switch
Horsepower @ Single Phase - 240V AC
3 hp
Pressure - Minimum
100 psi
Switch Function Configuration
Auto/Off
Actuator Style
Diaphragm
Differential Pressure - Maximum
40 psi
Pressure - Maximum
200 psi
Media Temperature - Maximum
257 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Horsepower @ Three Phase - 240V AC
5 hp
Media Temperature - Minimum
-33 Degrees F
Horsepower @ Three Phase - 480V AC
1 hp
CAD Available
Yes
NEMA Enclosure Rating
1
DC Contact Rating
1/4 HP @ 115VDC, 1/4 HP at 230VDC
Operating Temperature - Maximum
257 Degrees F
Pressure Switch Action Type
Standard
Operating Temperature - Minimum
-33 Degrees F
Unloader
1/4 in Compression Unloader Included
Proof Pressure
220 psi

Description

Air Compressor Switch, Air Compressor, Manual Switch Action Auto/Off, (4) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 135/175 psi, 1/4 in Compression Pressure Switch Unloader, Pressure Switch Differential 40 psi, Pressure Switch Range 60 to 200 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Standard, NEMA Rating 1, Series 9013FH, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, HP @ 3 Phase - 480V 1 hp
