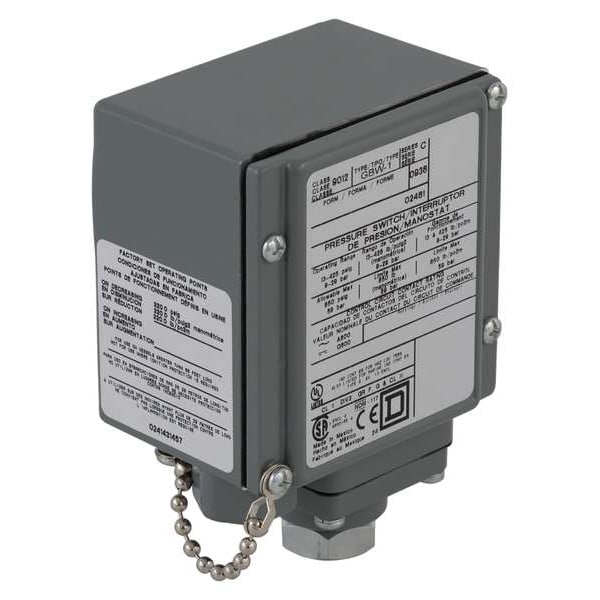

Pressure Switch, Standard, SPDT, 1 Ports, 1/4-18" FNPT, 13 to 425 psi Range, Aluminum

  • Mfr # 9012GBW1

  • Zoro # G1971654

product price:  $602.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
13 to 425 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9012GBW1
Zoro #
G1971654
UPC #
785901024811
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Depth
2.63 in
Overall Width
3.5 in
Overall Height
5.45 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
13 to 425 psi
Housing Material
Aluminum
Factory On Setting
13 psi
Factory Off Setting
425 psi
Standards
CE, CSA C22.2, RoHS, UL 508
DC Contact Rating
0.11A @ 250V, 0.22A @ 125V
Series
9012G
AC Contact Rating
10A @ 480V
Actuation Type
Diaphragm
IP Rating
54
Max. Pressure
850 psi
Pressure Switch Range
13 to 425 psi
Electrical Connection
Screw-Clamp Terminals
Pressure Switch Electrical Contact Form
SPDT
Special Features
Mercury Free; Green Premium product
Pressure Switch Differential
16 to 90 psi
Temp. Range
-10 to 185 °F
Pressure Switch Port Type
1-Port 1/4-18 in FNPT
Material
Die cast aluminium alloy
Media Temperature - Minimum
-40 Degrees F
Pressure - Minimum
13 psi
Differential Pressure - Minimum
16 psi
Deadband Adjustability
Adjustable
Differential Pressure - Maximum
90 psi
Proof Pressure
850 psi
Pressure - Maximum
425 psi
Media Temperature - Maximum
250 Degrees F
NEMA Enclosure Rating
13, 4, 4X
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
185 Degrees F

Description

Pressure Switch, NEMA Rating 13, 4, 4X, Series 9012G, Temp. Range -10 Degrees to 185 Degrees F, Standards CE, CSA C22.2, RoHS, UL 508, Special Features Nitrile (Buna-N) Diaphragm, Control Circuit Rated, Single Stage Switch, Water Tight, Dust Tight, Oil Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, AC Contact Rating 3 A @ 240 V
