  11. Proximity Sensor 12Mm Dc Pnp Xs5
This item is Discontinued.

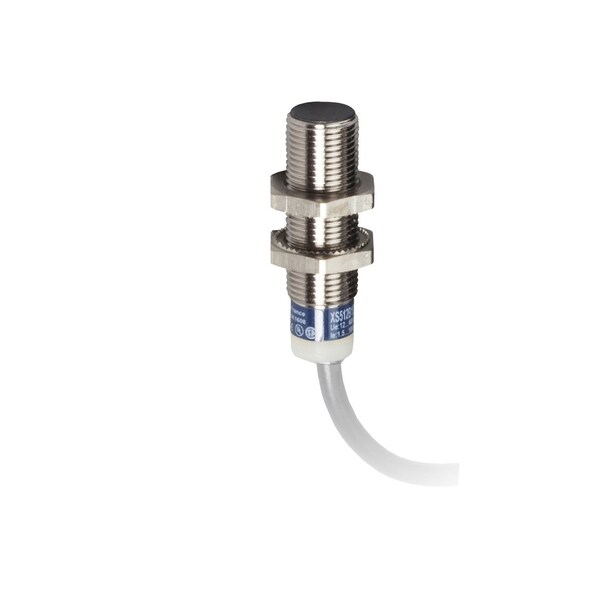

Telemecanique Sensors Proximity Sensor 12Mm Dc Pnp Xs5 XS512B1PBL2

Proximity Sensor 12Mm Dc Pnp Xs5 (Discontinued)

  • Mfr # XS512B1PBL2
  • Zoro # G0859960
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS512B1PBL2
Zoro #
G0859960
UPC #
785901517894
Country of Origin
France

Dimensions

Length
35 mm
Overall Height
35 mm
Cable Length
2 m

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Cylindrical M12
Measurement Range
0 to 1.6 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NC
Max. Detecting Distance
2 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
Nickel Plated Brass; PPS
Proximity Sensor Operating Frequency
Less than Or Equal to 5000 Hz
Standards
CE, CSA, REACH, RoHS, UL Listed
IP Rating
IP68, IP69K
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
Application
general purpose
Features
18 months Warranty, Yellow LED Output Indication
Differential Travel
1...15% of Sr
Maximum Delay Recovery
0.1 ms
Maximum Delay First Up
10 ms
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Storage Temp. Range
-40-85 °C
Body Type
fixed
Maximum Delay Response
0.1 ms
Series
XS5
Supply Voltage Limits
10-36 V DC
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 200 mA DC overload and short-circuit protection
Sensing Method
Inductive
Switching Frequency
5,000 Hz
Electrical Installation Type
Prewired Cable
Output Circuit Type
PNP
Output Circuit Contact Form
NC
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Body Material
Brass
Load Current - Maximum
10 mA
Sensing Distance - Maximum
2 mm

Description

Inductive Proximity Sensor, IP Rating IP68, IP69K, Standards CE, CSA, REACH, RoHS, UL Listed
