  11. Proximity Sensor, 508mm Adjustable, NPN, NO

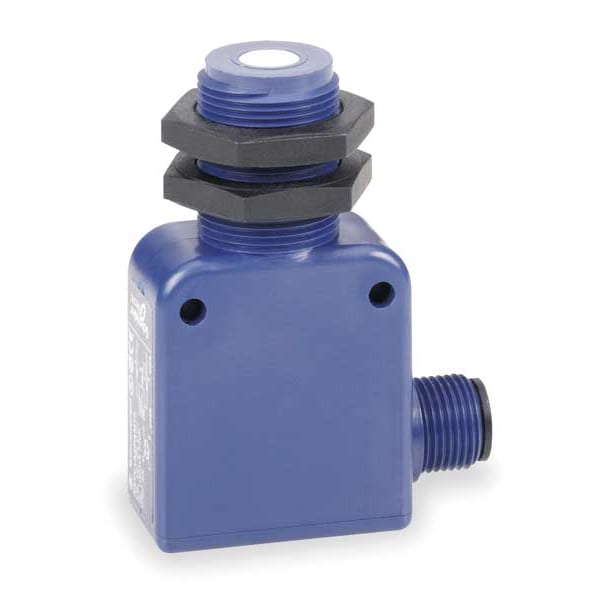

Telemecanique Sensors Proximity Sensor, 508mm Adjustable, NPN, NO XX7V1A1NAM12 - main

Proximity Sensor, 508mm Adjustable, NPN, NO

  • Mfr # XX7V1A1NAM12

  • Zoro # G1605344

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Case Material
Plastic
Circuit Type
NO
Detecting Distance
508mm
Output
NPN
Max. Load
100 mA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XX7V1A1NAM12
Zoro #
G1605344
UPC #
785901661337
Country of Origin
United States

Dimensions

Length
44 mm
Width
18 mm
Depth
60 mm
Length (Straight Wireway)
44 mm
Height
44 mm
Minimum Size Of Detected Object
cylinder diameter 2.5 mm 0.15 m || flat bar 1 mm wide 0.15 m
Overall Depth
60 mm
Overall Width
18 mm
Overall Height
44 mm

Details

Item
Rectangular Ultrasonic Sensor
Case Material
Plastic
Circuit Type
NO
Detecting Distance
508mm
Output
NPN
Max. Load
100 mA
Electrical Connection
M12
IP Rating
IP67
Operating Frequency
40 Hz
Operating Temp. Range
-20 Degrees to 65 Degrees C
Response Time
10 msec
NEMA Rating
12, 13, 4, 4X, 6, 6P
Description/Special Features
LED Status Indicator, Over Voltage, Reverse Polarity
Standards
CE, IEC 60947-5-2, REACH, UL Listed
Material
plastic
Switching Frequency
300 kHz
Maximum Voltage Drop
1 V
Repeat Accuracy
0.0127
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27
Status Led
supply on 1 LED green) || output state 1 LED yellow)
Front Material
epoxy
Resistance To Electrostatic Discharge
8 kV level 4 IEC 61000-4-2
[Sn] Nominal Sensing Distance
0.5-0.5 m adjustable with remote teach push-button
[Sd] Sensing Range
0.051-0.508 m
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Blind Zone
0-51 mm
Sensor Design
flat form 18 x 33 x 60 + cylindrical M18
Beam Angle
12°
Discrete Output Type
NPN
Sensor Type
ultrasonic sensor
Maximum Differential Travel
2.5 mm
Current Consumption
40 mA
Maximum Switching Current
100 mA
[Sa] Assured Operating Distance
0.051-0.508 m teach mode)
Ip Degree Of Protection
IP67 conforming to IEC 60529
Enclosure Material
valox
Wiring Technique
3-wire
Detection System
diffuse
Series Name
general purpose
Product Certifications
UL
Type Of Output Signal
discrete
Discrete Output Function
1 NO
Maximum Delay First Up
100 ms
Transmission Frequency
300 kHz
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Supply Voltage Limits
10-28 V DC
Maximum Delay Response
10 ms
Marking
CE
Sensor Name
XX7
Ambient Air Temperature For Storage
-40-80°C
Ambient Air Temperature For Operation
-20-65°C
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
10 ms
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Sensing Distance - Maximum
51 cm
Voltage Rating
10-28V DC
Resistance Properties
Electromagnetic Fields Resistant, Electrostatic Discharge Resistant, Electrical Fast Transient Resistant, Shock Resistant, Vibration Resistant
Features
Multi LED Status Indicator, Reverse Polarity Protection
Load Current - Maximum
40 mA
Style
Rectangular
Sensing Distance - Minimum
5 cm
Series
XX7
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Output Circuit Contact Form
NO
Output Circuit Type
NPN
Operating Temperature - Maximum
149 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Number of Pins
4
Body Material
Plastic

Description

Rectangular Ultrasonic Sensor, Case Material Plastic, Detecting Distance 508mm, NPN Output, Circuit Type NO, Max. Load 100 mA, Electrical Connection M12, Length 44 mm, Width 18 mm, Depth 60 mm, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, Operating Frequency 40 Hz, Standards CE, IEC 60947-5-2, REACH, UL Listed, Operating Temp. Range -20 Degrees to 65 Degrees C, Description/Special Features LED Status Indicator, Over Voltage, Reverse Polarity
