  11. Proximity Sensor Size C Dc Xs7 + Options
This item is Discontinued.

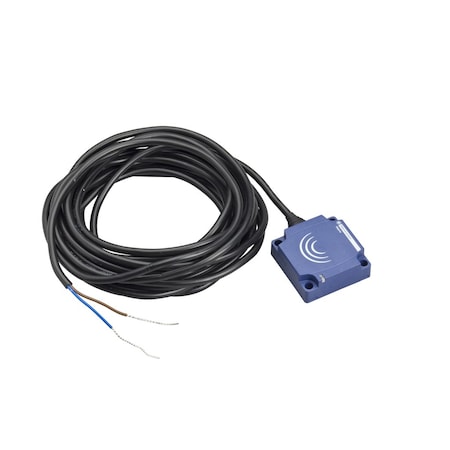

Telemecanique Sensors Proximity Sensor Size C Dc Xs7 + Options XS7C1A1DAL2

Proximity Sensor Size C Dc Xs7 + Options (Discontinued)

  • Mfr # XS7C1A1DAL2
  • Zoro # G0859699
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS7C1A1DAL2
Zoro #
G0859699
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
40 mm
Width
40 mm
Depth
15 mm
Overall Height
40 mm
Cable Length
2 m

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Flat Form 40 x 40 x 15
Measurement Range
0 to 12 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
2-Wire DC
Output Mode
1 NO
Max. Detecting Distance
12 mm
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Standards
C-Tick, CE, CSA, Ecolab, REACH, RoHS, UL Listed
Operating Temp. Range
-25 to 70 Degrees C
IP Rating
IP68
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Features
18 months Warranty, Yellow LED Output Indication
Application
general purpose
Switching Capacity
1.5...100 mA DC overload and short-circuit protection
Series
XS7
Maximum Delay Response
0.3 ms
Storage Temp. Range
-40-85 °C
Body Type
fixed
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Voltage Drop
<4 V closed)
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay First Up
5 ms
Supply Voltage Limits
10-36 V DC
Maximum Delay Recovery
0.7 ms
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
NO
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Inductive
Output Circuit Number of Wires
2
Body Material
PBT
Sensing Distance - Maximum
15 mm
Switching Frequency
1,000 Hz
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Proximity Sensor, IP Rating IP68, Standards C-Tick, CE, CSA, Ecolab, REACH, RoHS, UL Listed
