  11. Proximity Sensor Sz E Dc Pnp Xs8
This item is Discontinued.

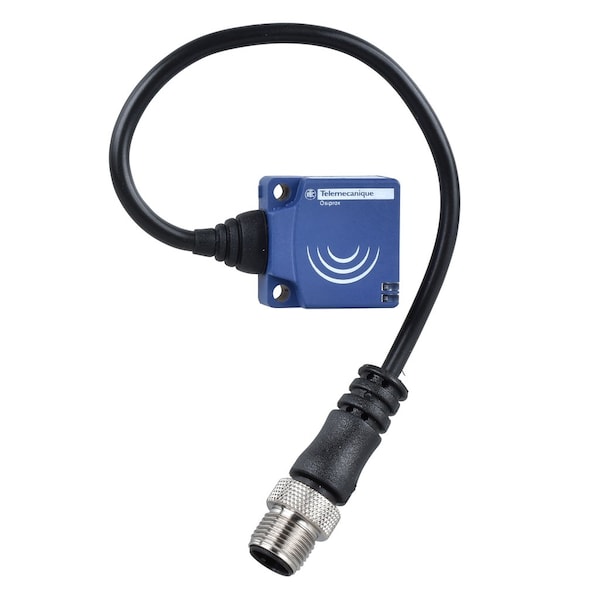

Telemecanique Sensors Proximity Sensor Sz E Dc Pnp Xs8 XS8E1A1PAL01M12

Proximity Sensor Sz E Dc Pnp Xs8 (Discontinued)

  • Mfr # XS8E1A1PAL01M12
  • Zoro # G0858886
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XS8E1A1PAL01M12
Zoro #
G0858886
UPC #
785901509752
Country of Origin
France

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm
Overall Height
26 mm
Overall Width
26 mm
Overall Depth
13 mm
Cable Length
0.15 m

Details

Item
Inductive Rectangular Proximity Sensor
Proximity Sensor Style
Flat Form 26 x 26 x 13
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
10 mm flush mountable; 15 mm non flush mountable
Proximity Sensor Electrical Connection
Remote Male Connector M12, 4 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Electrical Connection
M12
IP Rating
IP67
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face
Standards
CE, CSA, Ecolab, UL Listed
Max. Current Load
10 mA
Features
Overload Protection, Reverse Polarity Protection, Short Circuit Protection
Application
general purpose
Series
XS8
Maximum Voltage Drop
<2 V closed)
Supply Voltage Limits
10-36 V DC
Maximum Delay First Up
10 ms
Body Type
fixed
Maximum Delay Response
0.3 ms
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Storage Temp. Range
-40-85 °C
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Recovery
0.8 ms
Differential Travel
1...15% of Sr
Sensing Method
Inductive
Output Circuit Contact Form
NO
Output Circuit Type
PNP
Operating Temperature - Maximum
158 Degrees F
DC Voltage Rating
12-24V DC
Electrical Installation Type
Direct Connector
Sensing Face Shielding
Shielded
AC Voltage Rating
Not Rated
Number of Pins
4
Output Circuit Number of Wires
3
Switching Frequency
2,000 Hz
Includes Indicator Lights
No Indicator Lights Included
Sensing Distance - Maximum
15 mm
Operating Temperature - Minimum
-13 Degrees F
Style
Rectangular
Body Material
PBT

Description

Inductive Rectangular Proximity Sensor, IP Rating IP67, Standards CE, CSA, Ecolab, UL Listed
