  13. Roller Lever Arm, 8.44 In. Arm L

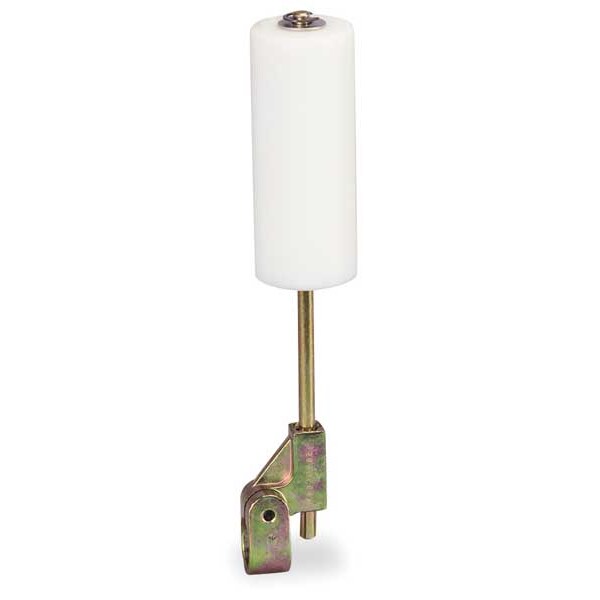

Telemecanique Sensors Roller Lever Arm, 8.44 In. Arm L 9007R21 - main

Roller Lever Arm, 8.44 In. Arm L

  • Mfr # 9007R21

  • Zoro # G1839381

product price: $134.99
/ea
Free Shipping & Returns

Key Features

For Use With
9007C, Mfr. No. 9007T/FT
Actuator Type
Conveyor Edge Guide
Arm Material
Zinc
Roller Dia.
1.5 in
Arm Length
8.4375 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007R21
Zoro #
G1839381
UPC #
785901910930
Country of Origin
Mexico

Dimensions

Roller Dia.
1.5 in
Arm Length
8.4375 in
Roller Width
3.75 in
Arm Length - Maximum
8.44 in
Manufacturer Warranty Length
18 mo
Roller Diameter
1.5 in

Details

Item
Limit Switch Lever Arm
For Use With
9007C, Mfr. No. 9007T/FT
Actuator Type
Conveyor Edge Guide
Arm Material
Zinc
Roller Material
Acetal
Roller Position
Same Side
Standards
EU RoHS, REACH
Actuator Style
Rotary Lever Roller
Series
9007
Compatible with Series
9007C, 9007FT, 9007S9, 9007T
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
185 Degrees F
Ambient Air Temperature For Operation
-10-185°F
Movement Of Operating Head
rotary
Product Or Component Type
limit switch lever
Device Short Name
9007T/FT
Type Of Operator
cast zinc vertical roller lever 8.44-8.44 in - conveyor roller and shaft without clamp (use 9007R16 or 17)
Series Name
severe duty
Type Of Roller
1 acetal resin conveyor side guide roller 1.5 in 3.75 in
Type Of Approach
lateral approach
Switch Actuation
by conveyor belt
Associated Complete Product
9007FT || 9007T || 9007C..S9
Ambient Air Temperature For Storage
-10-185°F
Environmental Characteristic
standard environment
Associated Head
9007BS9 || 9007T10S9 || 9007T5S9 || 9007CS9 || 9007AS9 || 9007NS9
Positive Opening
without

Description

Limit Switch Lever Arm, Actuator Type Conveyor Edge Guide, For Use With 9007C, Mfr. No. 9007T/FT, Arm Length 8.4375 in, Roller Position Same Side, Roller Dia. 1.5 in, Roller Width 3.75 in, Arm Material Zinc, Roller Material Acetal
