Safety Interlock 240Vac 5A Txcs

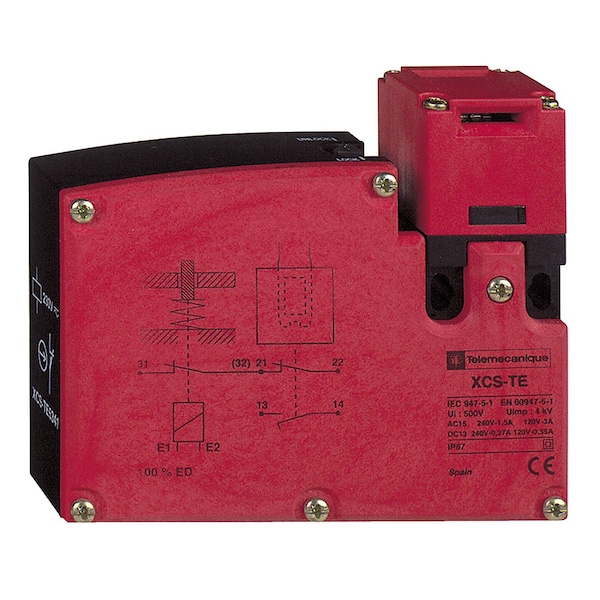

Safety Interlock Switch

XCSTE

EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 || EN/ISO 12100

plastic

PA (polyamide)

PA (polyamide)

terminal 1 x 0.5...2 x 1.5 mm² with or without cable end

10 gn 11 ms IEC 60068-2-27

key operated turret head

1000000 cycles

5 gn 10-500 Hz)IEC 60068-2-6

Plastic

1 entry tapped Pg 11

0.01 m/s

can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

0.5 m/s

double insulated

-25-60°C

1 NC slow-break)

slow-break, break before make

class II EN/IEC 61140

locking on de-energisation and unlocking on energisation of solenoid

10 A cartridge fuse gG (gl)

-40-70°C

10 VA

IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

6A

50/60 Hz

500 N

10 cyc/mn for maximum durability

safety switch

300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14

CSA || UL

1 NC + 1 NO

2

6 kV EN/IEC 60947-5-1

rectangular

24 V - 20...10 %

XCSTE

AC/DC

with NC contact

TC

15 N

0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
