  11. Through-Beam Photoelectric Sensor Transmitter, M12, Right Angle, Rectangular, Selectable Light On/Dark On, Transmitter

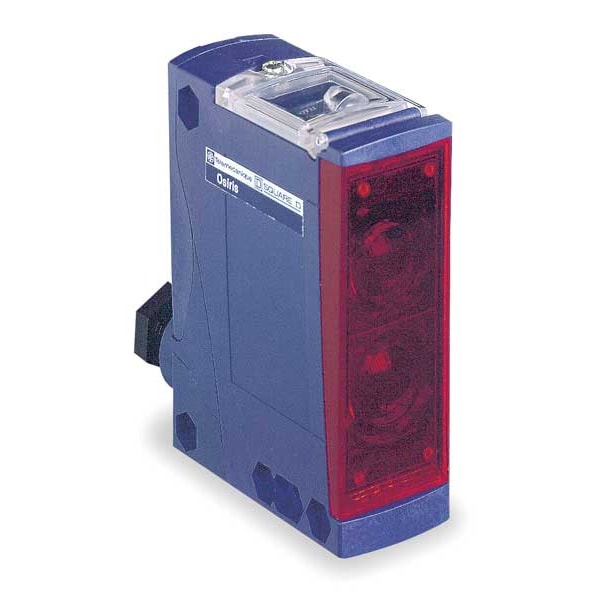

Telemecanique Sensors Through-Beam Photoelectric Sensor Transmitter, M12, Right Angle, Rectangular, Selectable Light On/Dark On, Transmitter XUX0ARCTT16T - main

Through-Beam Photoelectric Sensor Transmitter, M12, Right Angle, Rectangular, Selectable Light On/Dark On, Transmitter

  • Mfr # XUX0ARCTT16T

  • Zoro # G0922747

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Height
92 mm
Width
1.18"
Depth
3.44"
Material
plastic
Operation Mode
Selectable Light On/Dark On
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUX0ARCTT16T
Zoro #
G0922747
UPC #
785901501268
Country of Origin
France

Dimensions

Height
92 mm
Width
1.18"
Depth
3.44"
Depth - Rectangular Photoelectric Sensor
87 mm
Height - Rectangular Photoelectric Sensor
127 mm
Width - Rectangular Photoelectric Sensor
30 mm
Length
5.00"
Overall Height
92 mm
Overall Width
31 mm
Overall Depth
77 mm

Details

Item
Photoelectric Sensor Transmitter
Material
plastic
Operation Mode
Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor
60 m
Sensing Method
Through-Beam
Sensing Method - Rectangular Photoelectric Sensor
Through Beam Transmitter
Max. Load Current
3,000 mA
Operating Temp. Range
-25 Degrees to 55 Degrees C
Shape
Rectangular
Power Requirement
24 to 240VAC/DC
IP Rating
IP65, IP67
Electrical Connection - Rectangular Photoelectric Sensor
Screw Terminal
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
NEMA Rating
IP67
Features
Background Suppression, Overload Protection, Polarized Retro-Reflective, Retro-Reflective
Body Material
PBT
Operating Frequency
25 Hz
Max. Sensing Distance
60m
Power Requirement - Rectangular Photoelectric Sensor
24 to 240V AC/DC
Electrical Connection
M12
Light Source
Infrared LED
Standards
CE, CSA Certified, IEC 60529, RoHS, UL Listed
Response Time
25 msec
Current Consumption
20 mA no-load
Cable Entry
1 entry for M16 x 1.5 cable gland 7-10 mm
[Us] Rated Supply Voltage
24...240 V AC/DC
Electronic Sensor Type
photo-electric sensor transmitter
Supply Circuit Type
AC/DC
Time Delay Range
0.02...15 s monostable, on-delay or off-delay (programmable)
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Maximum Delay Recovery
25 ms
Ambient Air Temperature For Operation
-25-55°C
Lens Material
PMMA
Maximum Voltage Drop
<1.5 V closed state)
Sensor Name
XUX
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Sensor Design
compact 92 x 71
Add On Input
test by emission breaking
Electrical Durability
500000 cycles 0.4 500 cyc/mn || 500000 cycles 1 3000 cyc/mn
Ip Degree Of Protection
IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529
Series Name
general purpose multimode
Setting-Up
without sensitivity adjustment
Status Led
1 LED green)supply on
Wiring Technique
3-wire
Maximum Delay First Up
200 ms
Emission
infrared thru beam
[Sn] Nominal Sensing Distance
40-40 m thru beam need a receiver
Switching Frequency
20 Hz
Detection System
thru beam
Switching Capacity In Ma
0.5 A cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V) || 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
UL || CSA || CE
Maximum Delay Response
25 ms
Enclosure Material
PBT
Maximum Sensing Distance
60 m thru beam
Series
XU
Operating Mode
Selectable Light On/Dark On
Number of Pins
3
Operating Temperature - Minimum
-13 Degrees F
Emitted Sensor Light
Infrared
Style
Rectangular
Operating Temperature - Maximum
131 Degrees F
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
40 m
Product Type
Photoelectric Sensor Transmitter
Load Current - Maximum
500 mA
Sensing Distance - Minimum
0 m
DC Voltage Rating
24-240V DC
AC Voltage Rating
24-240V AC
Output Circuit Type
Transmitter
Orientation
Right Angle
Electrical Installation Type
Direct Connector

Description

Photoelectric Sensor Transmitter, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
