  13. Vacuum Switch, Standard, 1NO/1NC, 0 to 25 in Hg Range

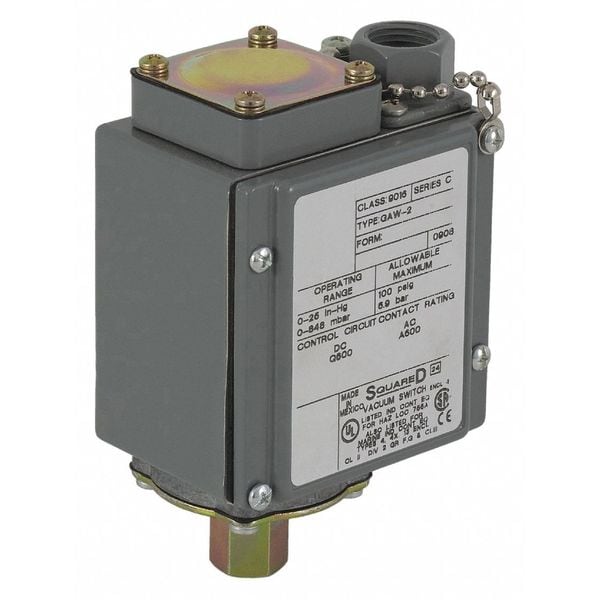

Telemecanique Sensors Vacuum Switch, Standard, 1NO/1NC, 0 to 25 in Hg Range 9016GAW2 - main

Vacuum Switch, Standard, 1NO/1NC, 0 to 25 in Hg Range

  • Mfr # 9016GAW2

  • Zoro # G1103882

product price: $301.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO/1NC
Differential
5 to 20 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 25 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9016GAW2
Zoro #
G1103882
UPC #
785901025276
Country of Origin
Mexico

Dimensions

Overall Depth
2.63 in
Overall Width
3.5 in
Manufacturer Warranty Length
18 mo
Overall Height
5.94 in
Depth
2.63 in
Height
5.94 in
Width
3.5 in
Vacuum Sensor Size
25 inHg

Details

Item
Vacuum Switch
Contact Form
1NO/1NC
Differential
5 to 20 in Hg
NEMA Rating
13, 4, 4X
Port Type
1-Port 1/4-18 in FNPT
Range
0 to 25 in Hg
Series
9016G
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Standards
UL 508
Pressure Connection Type
1/4-18" NPTF
Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
185 Degrees F
Pressure - Maximum
100 psi
Differential Pressure - Minimum
2.46 psi
Operating Temperature - Minimum
10 Degrees F
Number of Pressure Connection Ports
1
Media Temperature - Maximum
250 Degrees F
Differential Pressure - Maximum
9.82 psi
NEMA Enclosure Rating
13, 4, 4X
Operating Position
any position
Fluid Connection Type
0.25 inch 18 NPTF UL 508
Line Rated Current
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Ambient Air Temperature For Storage
10-185°F
Vibration Resistance
2 gn 40-150 Hz)IEC 68-2-6
Local Signalling
without
Enclosure Material
die cast aluminium alloy 380
Vacuum Switch Type Of Operation
regulation between two thresholds
Cable Entry
0.5 inch NPT conduit entrance
Contacts Type And Composition
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Device Application
sensitive control application
Maximum Pressure
100 psi
Setting
internal
Ambient Air Temperature For Operation
10-185°F
Approx Adjustable Differential At Mid Range
5-20 inHg
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Range On Decreasing Vacuum
0-25 inHg
Shock Resistance
50 gn IEC 58-2-27
Pressure Actuator
diaphragm nitrile (Buna-N)
Materials In Contact With Fluid
zinc plated steel || nitrile (Buna-N) || 3M Scotch-Grip 847 rubber and gasket adhesive
Product Certifications
UL listed file E12158 CCN NKPZ and CCN NTHT || CSA file LR25490
Maximum Operating Rate
120 cyc/mn
Scale Type
adjustable differential
Mechanical Durability
5000000 cycles
Terminal Block Type
4 screw terminals
Product Or Component Type
electromechanical vacuum switch
Nema Degree Of Protection
NEMA 4/4X/13 UL 698
Device Short Name
9016G
Repeat Accuracy
0.004
Local Display
without
Short-Circuit Protection
10 A cartridge overload and short-circuit protection gL
Electrical Circuit Type
control circuit

Description

Vacuum Switch, Range 0 to 25 in Hg, Contact Form 1NO/1NC, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 5 to 20 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
