  13. Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range

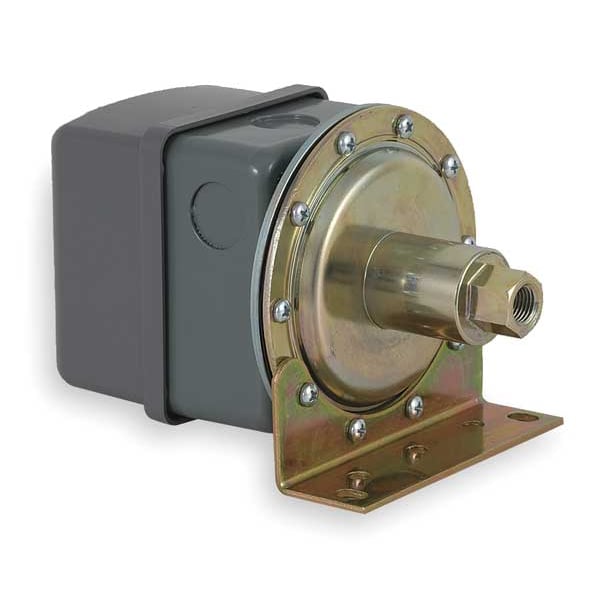

Telemecanique Sensors Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range 9016GVG1J09EF - main

Vacuum Switch, Standard, DPST, 5 to 25 in Hg Range

  • Mfr # 9016GVG1J09EF

  • Zoro # G1917675

product price: $401.99
/ea
Free Shipping & Returns

Key Features

Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
5 to 25 in Hg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9016GVG1J09EF
Zoro #
G1917675
UPC #
785901569091
Country of Origin
Mexico

Dimensions

Overall Width
4.58 in
Manufacturer Warranty Length
18 mo
Overall Height
7.13 in
Overall Depth
4.69 in
Height
7.13 in
Depth
4.69 in
Width
4.58 in
Vacuum Sensor Size
25 inHg

Details

Item
Vacuum Switch
Contact Form
DPST
Differential
5 to 10 in Hg
NEMA Rating
1
Port Type
1-Port 1/4-18 in FNPS
Range
5 to 25 in Hg
Series
9016GVG
Action
Standard
Ambient Temp. Range
-10 Degrees to 185 Degrees F
Media Temp. Range
-14 Degrees to 250 Degrees F
Features
(2) Thresholds, Adjustable Scale, Electromechanical
Standards
UL 508
Electrical Connection
screw-clamp terminals AWG 22...AWG 12
Pressure Connection Type
1/4-18" FNPT
Pressure - Maximum
100 psi
Operating Temperature - Minimum
-10 Degrees F
Media Temperature - Minimum
-40 Degrees F
Differential Pressure - Minimum
2.46 psi
Differential Pressure - Maximum
4.91 psi
NEMA Enclosure Rating
1
Operating Temperature - Maximum
185 Degrees F
Media Temperature - Maximum
250 Degrees F
Number of Pressure Connection Ports
1
Ambient Air Temperature For Operation
10-185°F
Cut-In Range
0-20 inHg
Ambient Air Temperature For Storage
10-185°F
Pressure Actuator
diaphragm nitrile (Buna-N)
Value Of Setting
3...8 inHg
Short-Circuit Protection
20 A cartridge fuse gG
Enclosure Material
stamped metal
Maximum Pressure
100 psi
Cover Material
polypropylene, noryl thermoplastic resin or equivalent
Repeat Accuracy
0.025
Device Short Name
9016GVG
Cable Entry Number
3 knock-outs for 1/2" NPT conduit
Approx Adjustable Differential At Mid Range
5-10 inHg
Product Certifications
UL listed file E12158 CCN NKPZ || CSA file LR25490
Scale Type
adjustable
Terminal Block Type
8 screw terminals
Vacuum Switch Type Of Operation
regulation between two thresholds
Device Application
power circuit application
Contacts Type And Composition
2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
Operating Position
any position
Controlled Fluid
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Mechanical Durability
300 cycles
Factory Modification
3-way lever || with mounting bracket
Local Display
without
Fluid Connection Type
0.25 inch 18 NPSF UL 508
Maximum Operating Rate
100 cyc/mn
Motor Power Kw
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC
Materials In Contact With Fluid
zinc plated steel || nitrile (Buna-N) || 3M Scotch-Grip 847 rubber and gasket adhesive
Cut Out Range
5-25 inHg
Setting
internal
Nema Degree Of Protection
NEMA 1 UL 698
Electrical Circuit Type
power circuit
Product Or Component Type
electromechanical vacuum switch

Description

Vacuum Switch, Range 5 to 25 in Hg, Contact Form DPST, Port Type 1-Port 1/4-18 in FNPS, NEMA Rating 1, Action Standard, Differential 5 to 10 in Hg, 9016GVG Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
