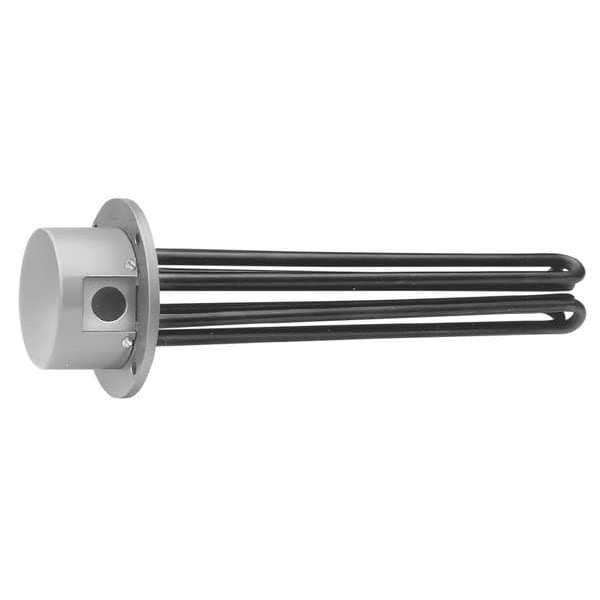

Nonpressure Rated Flanged Heater

  • Mfr # TPN01179

  • Zoro # G2194875

product price:
$
493.99
/ea
Free Shipping & Returns

Key Features

Phase
3
Heater Voltage
460V AC
Watts
12,000 W
Watt Density
43.61 W/sq in
Overall Length
19 5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TPN01179
Zoro #
G2194875
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
19 5/8 in
Min. Immersion Depth
17 in
Flange Size
6 1/2 in
Heating Element Length
17 in
Heating Element Width
3 3/8 in
Wire Rope Length
19 5/8 in
Length
19 5/8 in

Details

Phase
3
Heater Voltage
460V AC
Watts
12,000 W
Watt Density
43.61 W/sq in
Sheath Material
Incoloy(R) 800
Item
Flanged Heater
Enclosure Type
NEMA 1
Flange Material
Steel
Includes
Gasket
Special Information
Tubular Heating Elements Silver Brazed or Tig Welded to a Flange Cut from Steel or Stainless Steel Plate
For Use With
Air Heating, Dehumidifying Dryers, Heat Exchange Systems, Hot Air Dryers, Steam Table
Type
Flange Heater Non Pressure Rated
Temperature Output - Maximum
257 Degrees F
Heating Element Material
Incoloy(R) 800
Heater Mounting Type
Flange
Product Type
Immersion Heater

Description

Flanged Heater, 12,000 W Watts, Sheath Material Incoloy(R) 800, Watt Density 43.61 W/sq in, Flange Size 6 1/2 in, Heater Voltage 460V AC, 3 Phase, Overall Length 19 5/8 in, Enclosure Type NEMA 1, Min. Immersion Depth 17 in, Flange Material Steel, Special Information Tubular Heating Elements Silver Brazed or Tig Welded to a Flange Cut from Steel or Stainless Steel Plate, For Use With Air Heating, Dehumidifying Dryers, Heat Exchange Systems, Hot Air Dryers, Steam Table, Includes Gasket
