  13. Process Thermostat, Open on Rise, 50 Degrees to 525 Degrees F, SPST, 120/240V AC

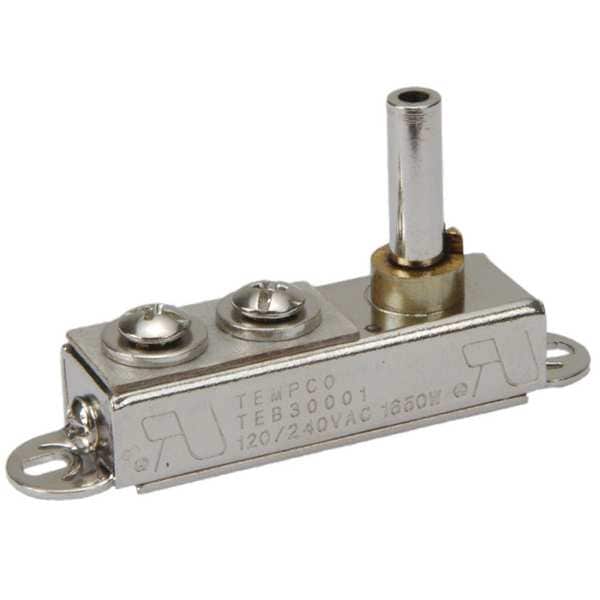

Tempco Process Thermostat, Open on Rise, 50 Degrees to 525 Degrees F, SPST, 120/240V AC TEB30001 - main

Process Thermostat, Open on Rise, 50 Degrees to 525 Degrees F, SPST, 120/240V AC

  • Mfr # TEB30001

  • Zoro # G2581573

product price: $71.25
/ea

Key Features

Material
Steel
Switch Action
Open on Rise
Voltage
120/240V AC
Sensor Type
Bonded Bi-Metal Strip
Switch Type
SPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TEB30001
Zoro #
G2581573
UPC #
-
Country of Origin
United States

Dimensions

Height
1-1/2"
Overall Length
2 9/16 in
Overall Width
5/8 in
Overall Height
1 1/2 in

Details

Material
Steel
Switch Action
Open on Rise
Voltage
120/240V AC
Sensor Type
Bonded Bi-Metal Strip
Switch Type
SPST
Color
Silver
Agency Compliance
cUR
Contact Rating Resistive @ 120V
13.75 A
Item
Process Thermostat
Number of Switches
1
Contact Rating Resistive @ 240V
6.87 A
Thermostat Switch Type
SPST
Control Range
50 Degrees to 525 Degrees F
Application
Heat Only
Inductive Amps @ 120V
13.75 A
Includes
#6-32 Screws for Wiring to Unit
Full Load Amps @ 240VAC
6.87 A
Full Load Amps @ 120VAC
13.75 A
Standards
cURus E224645
Inductive Amps @ 240V
6.87 A
Thermostat Type
Process Thermostat
Mounting
Tabs with Holes
Enclosure Type
Stainless Steel
Control Type
Adjustable Screw (Dial Optional)
Features
The Heat Sensitive Base Plate of the Thermostat Must be Mounted in Full Contact with the Heated Surface, Endurance 100, 000 Cycles
Operating Temperature Range
50 Degrees to 525 Degrees F
Number of Poles
1
Full Load Amps @ 120V AC
13.75 A
Full Load Amps @ 240V AC
6.87 A
Electrical Connection Type
Screw Terminal
Maximum Control Temperature
525 Degrees F
Dial Configuration
Numeric
Maximum Operating Temperature
525 Degrees F
Minimum Control Temperature
50 Degrees F
Minimum Operating Temperature
50 Degrees F
Temperature Control Range
50 Degrees to 525 Degrees F
Switch Type/Action
SPST/Open on Rise
Setpoint Adjustability
Adjustable Setpoint
Product Type
Process Thermostat

Description

Process Thermostat, Overall Length 2-3/4 In., Switch Action Open On Rise, Switch Type SPST, Number of Switches 1, Contact Rating Resistive @ 120V 13.75A, Contact Rating Resistive @ 240V 6.87A, Control Range 50 Degrees to 525 Degrees F, Sensor Type Bonded Bi-Metal Strip, Agency Compliance cUR
