  13. Process Thermostat, Open on Rise, Fixed 100 Degrees F, 120/240V AC

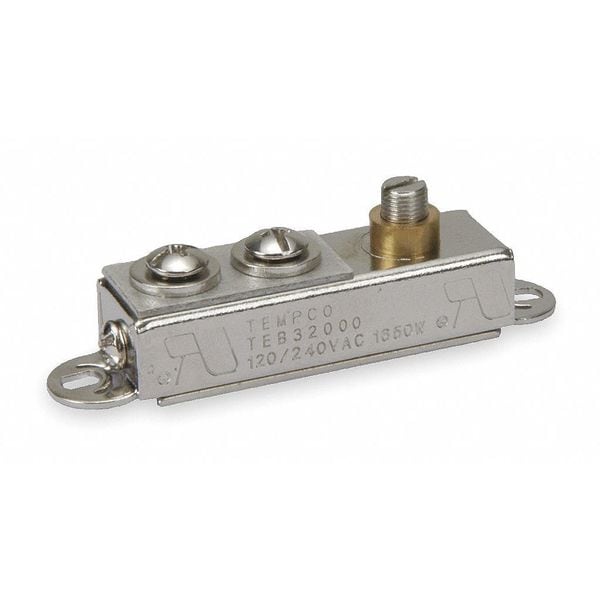

Tempco Process Thermostat, Open on Rise, Fixed 100 Degrees F, 120/240V AC TEB32005 - main

Process Thermostat, Open on Rise, Fixed 100 Degrees F, 120/240V AC

  • Mfr # TEB32005

  • Zoro # G3398421

product price: $54.55
/ea

Key Features

Material
Steel
Switch Action
Open on Rise
Voltage
120/240V AC
Sensor Type
Bonded Bi-Metal Strip
Switch Type
SPST
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TEB32005
Zoro #
G3398421
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 9/16 in
Overall Width
5/8 in
Overall Height
3/4 in

Details

Material
Steel
Switch Action
Open on Rise
Voltage
120/240V AC
Sensor Type
Bonded Bi-Metal Strip
Switch Type
SPST
Color
Silver
Agency Compliance
cUR
Item
Process Thermostat
Contact Rating Resistive @ 240V
6.87 A
Number of Switches
1
Control Range
Fixed 100 Degrees F
Contact Rating Resistive @ 120V
13.75 A
Mounting
Tabs with Holes
Full Load Amps @ 120VAC
13.75 A
Full Load Amps @ 240VAC
6.87 A
Standards
cUR
Application
Heat Only
Inductive Amps @ 240V
6.87 A
Includes
#6-32 Screws for Wiring to Unit
Inductive Amps @ 120V
13.75 A
Enclosure Type
Stainless Steel
Thermostat Type
Process Thermostat
Features
The Heat Sensitive Base Plate of the Thermostat Must be Mounted in Full Contact with the Heated Surface, Endurance 100, 000 Cycles
Control Type
Adjustable Screw
Operating Temperature Range
50 Degrees to 249 Degrees F
Number of Poles
1
Minimum Control Temperature
100 Degrees F
Full Load Amps @ 240V AC
6.87 A
Dial Configuration
Numeric
Setpoint Adjustability
Fixed Setpoint
Minimum Operating Temperature
50 Degrees F
Full Load Amps @ 120V AC
13.75 A
Electrical Connection Type
Screw Terminal
Temperature Control Range
100 Degrees F
Maximum Control Temperature
100 Degrees F
Maximum Operating Temperature
249 Degrees F
Switch Type/Action
SPST/Open on Rise
Product Type
Process Thermostat

Description

Process Thermostat, Overall Length 2-3/4 In., Switch Action Open on Rise, Switch Type SPST, Number of Switches 1, Contact Rating Resistive @ 120V 13.75A, Contact Rating Resistive @ 240V 6.87A, Control Range Fixed 100 Degrees F, Sensor Type Bonded Bi-Metal Strip, Agency Compliance cUR
