Shop TEMPCO

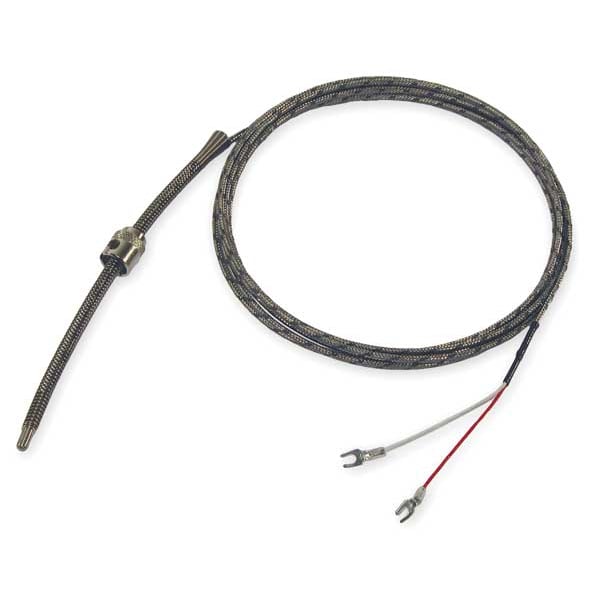

Thermocouple Probe, Spade Lugs, Type J

  • Mfr # TCP10223
  • Zoro # G2887805
product price:
$
52.49
/ea

Key Features

Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
900
Thermocouple Element
20 AWG
Probe Length
6.5 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCP10223
Zoro #
G2887805
UPC #
-
Country of Origin
United States

Dimensions

Probe Length
6.5 in
Lead Length
10 ft
Sheath Size (In.)
0.188 in
Probe Tip Diameter
0.25 in
Cable Length
10 ft
Probe Diameter
0.25 in
Probe Size
1/4 in x 6 1/2 in
Opening/Diameter
7/16 in ID Bayonet Cap

Details

Item
Spring Adjustable Thermocouple
Grounded / Ungrounded
Grounded
Thermocouple Type
Type J
Temp. Limit (Deg. F)
900
Thermocouple Element
20 AWG
Material
304 Stainless Steel
Plug or Connector Type
Fork Terminal
Standards
ANSI
Error Accuracy (%)
+/-0.75
Insulation
Fiberglass With Stainless Steel Braid
Sensor Type
Thermocouple
Probe Sheath Material
304 Stainless Steel
For Solids
Yes
For Surfaces
No
For Gases
No
Tip Style
Rounded
For Liquids and Gels
No
Process Mounting
Spring-Loaded Bayonet Cap
Junction Type
Grounded
Maximum Temperature C
760 Degrees C
Temperature Range
32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C
Cable Material
Fiberglass with Stainless Steel Braid
Accuracy
+/-2.2 Degrees C or +/-0.75 %, Whichever is Greater
Maximum Wire Gauge
0.25 mm
For Air
No
Connector Type
Spade Lugs
Minimum Temperature F
32 Degrees F
Minimum Temperature C
0 Degrees C
Fitting Type
Bayonet
For Application
Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Maximum Temperature F
1,400 Degrees F
Includes Thermowell
No
Maximum Temperature °F
1,400 Degrees F
Minimum Temperature °C
0 Degrees C
Minimum Temperature °F
32 Degrees F
Maximum Temperature °C
760 Degrees C
Minimum Temperature °F
32 Degrees F
Maximum Temperature °C
760 Degrees C
Maximum Temperature °F
1,400 Degrees F
Minimum Temperature °C
0 Degrees C
Probe Bend
Straight
Process Mounting Connection
Bayonet
Maximum Temperature (°C)
760 Degrees C
Maximum Temperature (°F)
1,400 Degrees F
For Media Type
Solids, Surfaces

Description

Spring Adjustable Thermocouple, Type J, Grounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Spring-Loaded Bayonet Cap, Spade Lugs, Probe Size 1/4 in x 6 1/2 in, Cable Length 10 ft, 32 Degrees to 1,400 Degrees F/0 Degrees to 760 Degrees C, Thermocouple
